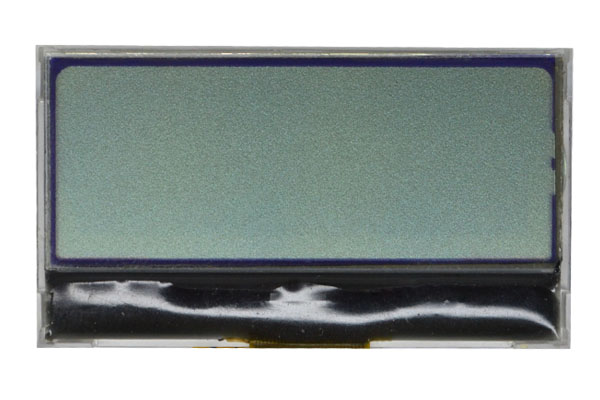

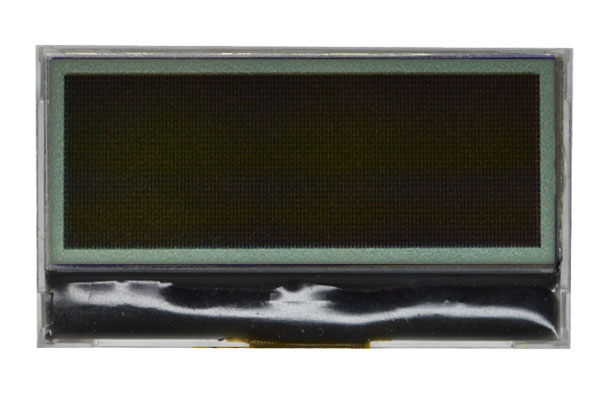

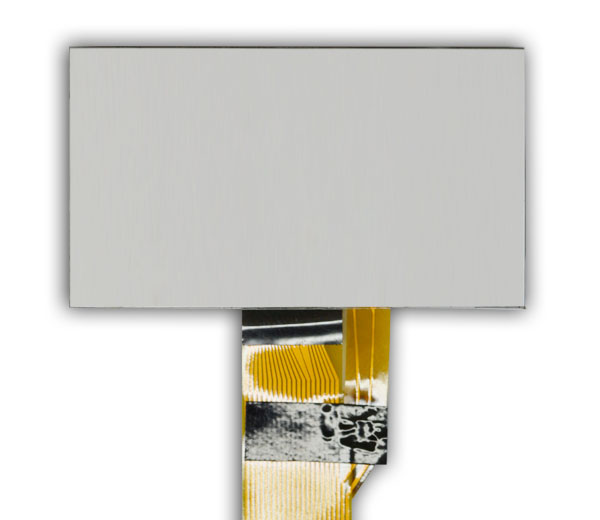

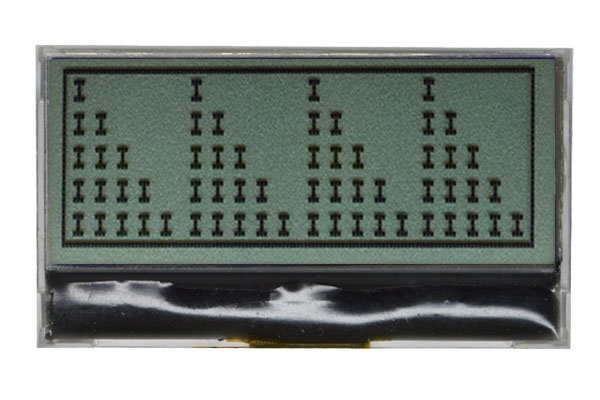

The features of LCD are as follows
* Display mode : FSTN/Transmissive/Positive
* Drive IC :ST7567
* Interface Input Data : 8080 series or 6800 series or 4-line
* Driving Method : 1/33Duty, 1/6Bias
* Viewing Direction : 6O’clock
* Backlight : LED/Orange
*Sample NO. :G1203E0FTM1G-A0_01/20110414
For reference only. For design purposes, please use the specifications in the datasheet.

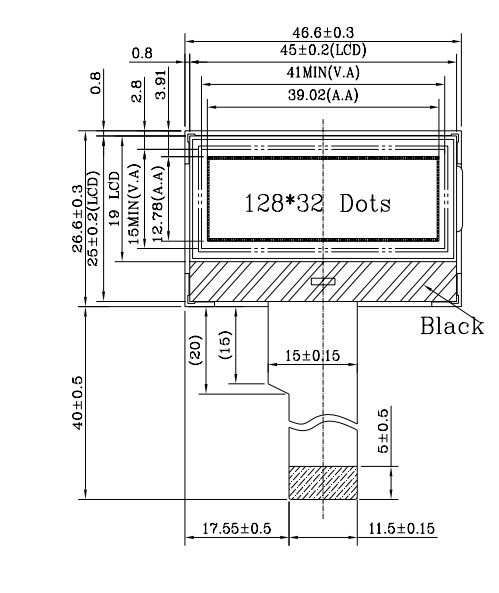

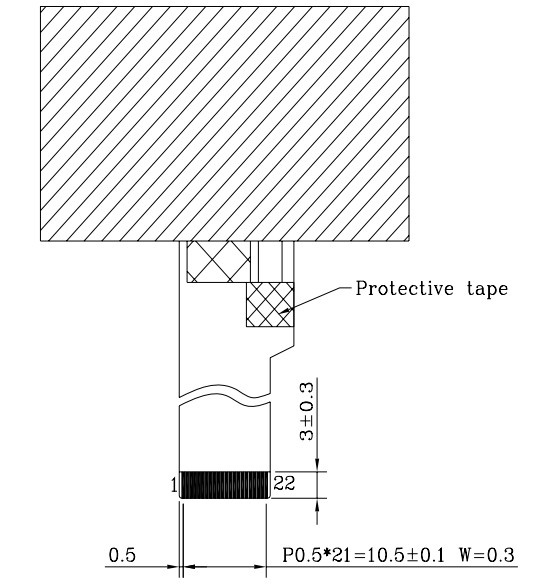

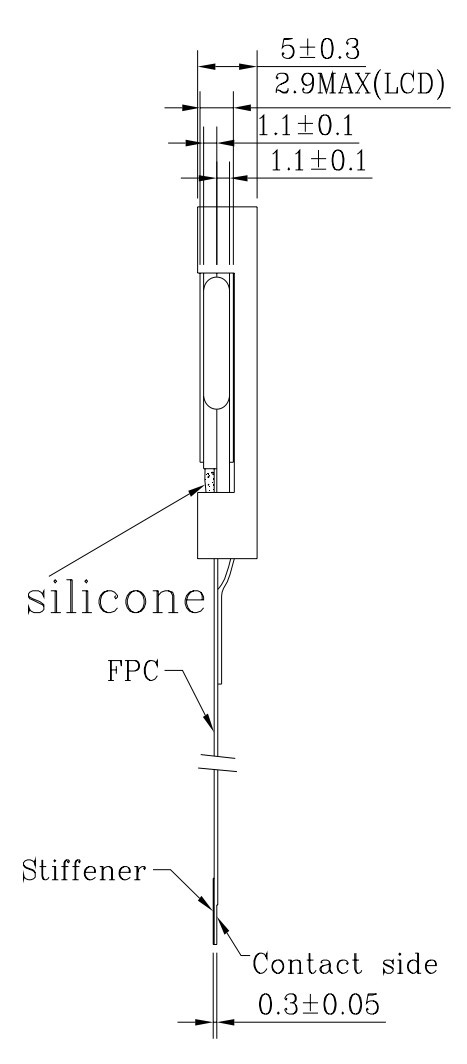

Physical Characteristics
| Column Dots x Row Dots |
128*32 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
46.6 |
26.6 |
5 |
41 |
15 |
39.02 |
12.78 |
| inches |
1.83 |
1.05 |
0.20 |
1.61 |
0.59 |
1.54 |
0.50 |
| |

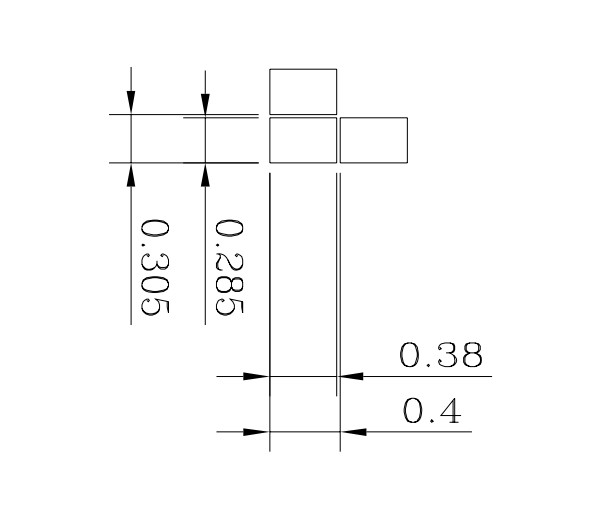

Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.285 |
0.38 |
0.305 |
0.4 |
| inches |
0.011 |
0.015 |
0.012 |
0.016 |
Optical Characteristics
| Display Addressing |
GlassType |
Polarizer |
View Direction |
| Passive |
FSTN |
Transmissive |
6:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~3.6 |
Logic Supply Voltage（V） |
3 |
| Supply Voltage For LCD Drive(V) |
-0.3~16 |
LCD Drive（V） |
6.5 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
0.13 |
| Backlight |
| Forward Current(mA) |
40 |
Forward Voltage(V) |
2.0 |
| Reverse Voltage(V) |
5 |
Average Luminous Intensity(cd/m2) |
80 |
| Power Dissipation(mW) |
88 |
Peak emission wavelength(nm) |
592 |
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
0° |
50° |
-10° |
60° |
| Farenheit |
32° |
122° |
14° |
140° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |

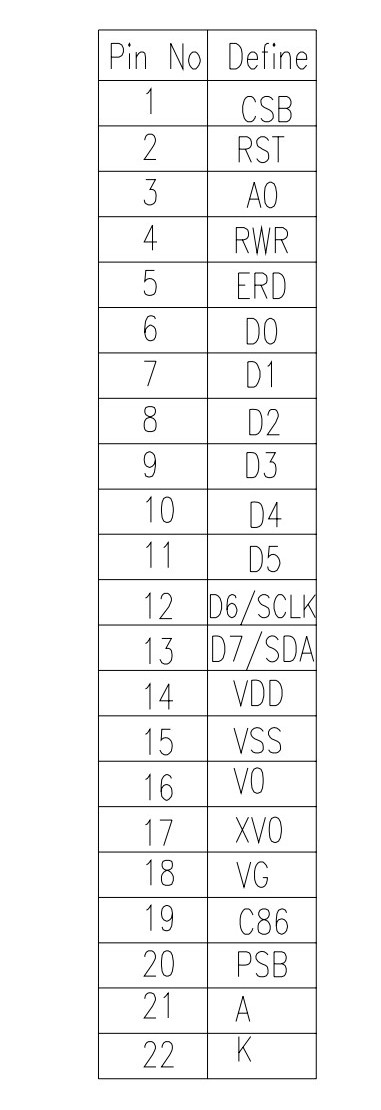

Electronics
| Interface |
8080 series or 6800 series or 4-line |
