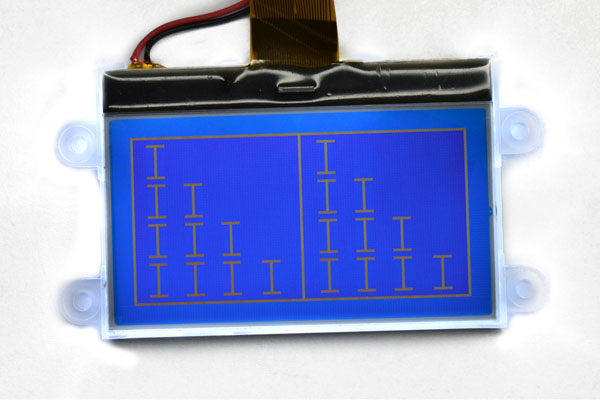

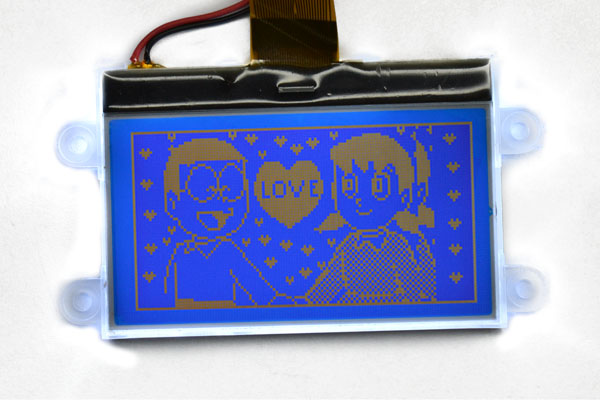

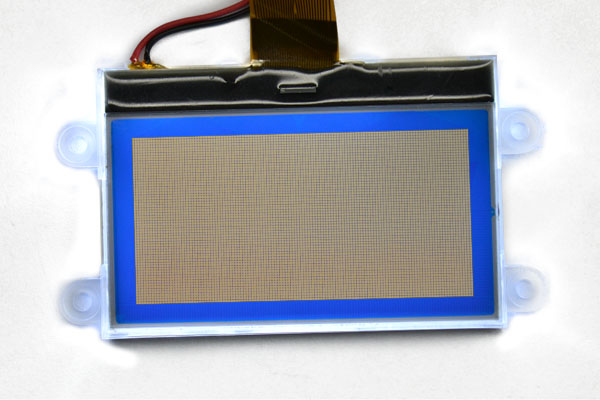

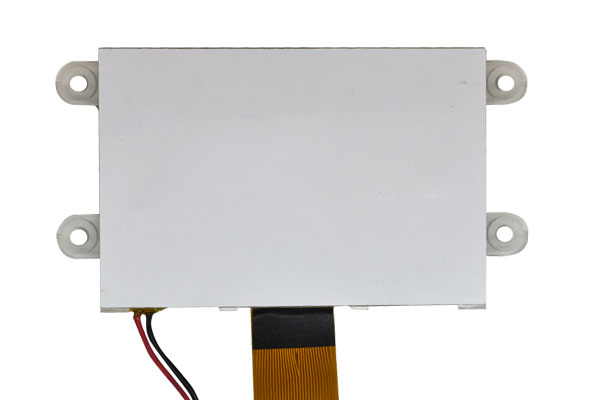

The features of LCD are as follows
* Display mode : STN/BLUE/ Transmissive/Negative
* Controller IC : NT7538

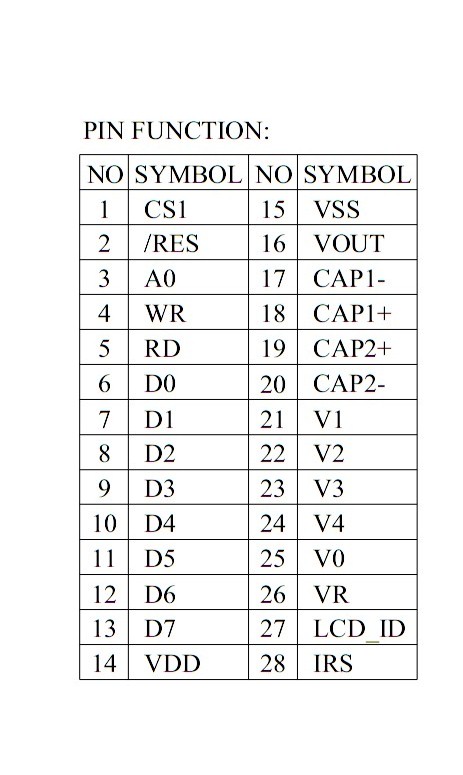

* Interface Input Data : 8080 interface
* Driving Method : 1/65Duty, 1/9Bias
* Viewing Direction : 6O’clock
* Backlight : Edge white
*Sample NO. : G1206B4SGW6G-A0_01/20110218
For reference only. For design purposes, please use the specifications in the datasheet.

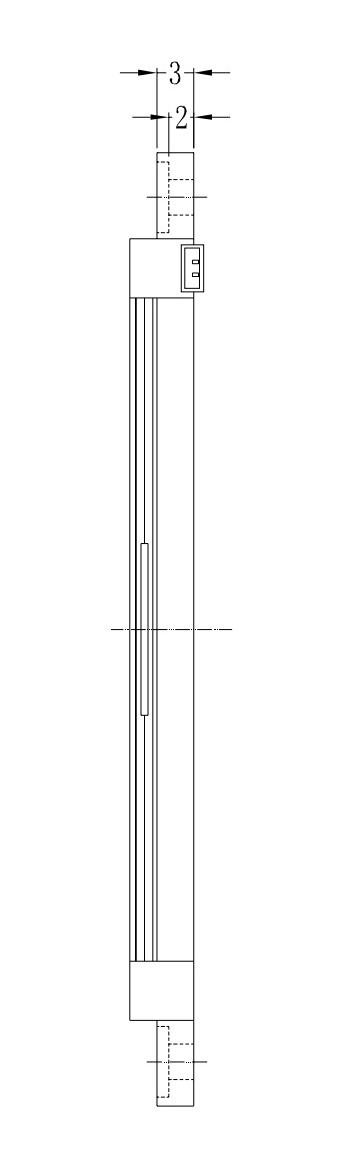

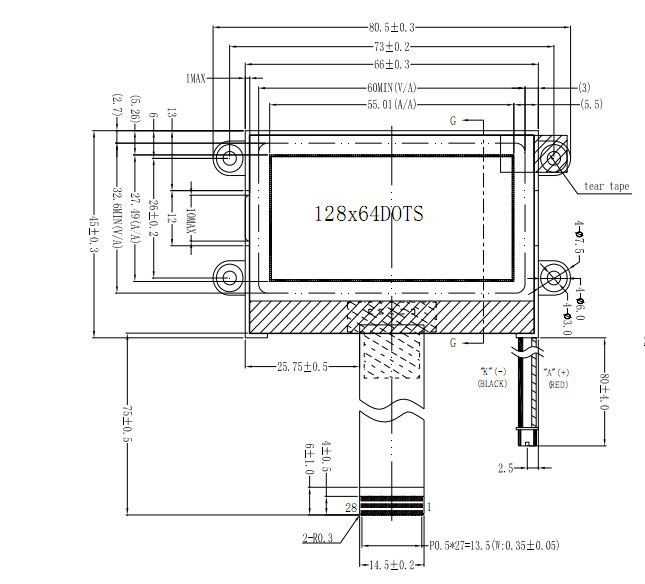

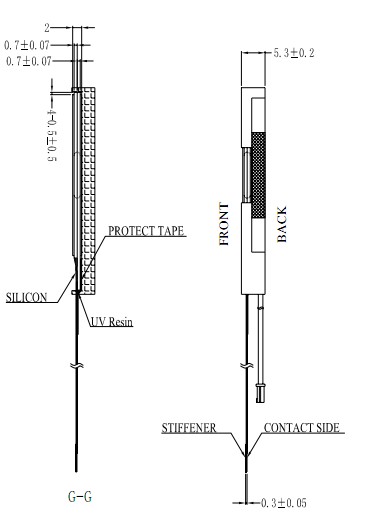

Physical Characteristics
| Column Dots x Row Dots |
128*64 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
80.5 |
45 |
5.3 |
60 |
32.6 |
55.01 |
27.49 |
| inches |
3.17 |
1.77 |
0.21 |
2.36 |
1.28 |
2.17 |
1.08 |
| |

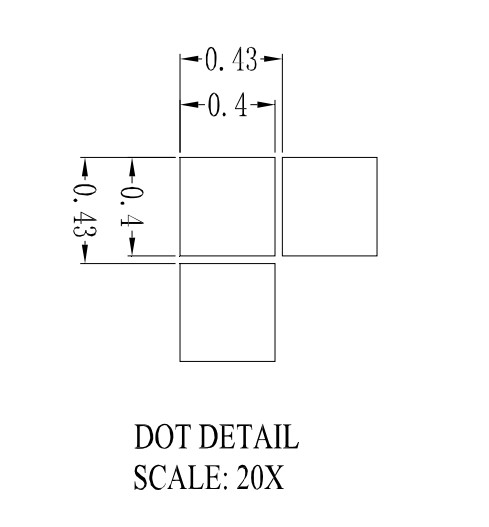

Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.4 |
0.4 |
0.43 |
0.43 |
| inches |
0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Blue |
Transmissive |
6:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~4.0 |
Logic Supply Voltage（V） |
3.0 |
| Supply Voltage For LCD Drive(V) |
-0.3~15 |
LCD Drive（V） |
7.6 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
0.54 |
| Backlight |
| Forward Current(mA) |
60 |
Forward Voltage(V) |
3.1 |
| Reverse Voltage(V) |
5 |
Average Luminous Intensity(cd/m2) |
300 |
| Power Dissipation(mW) |
186 |
|
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
