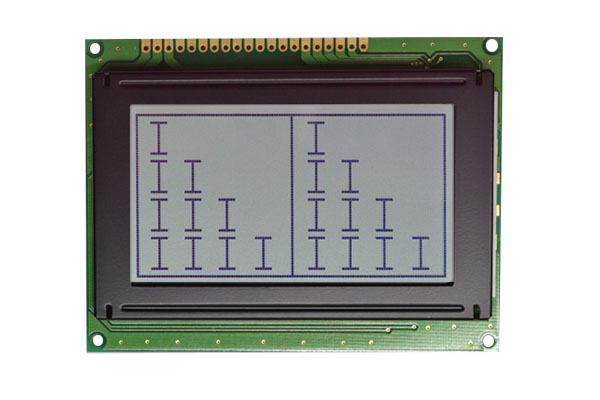

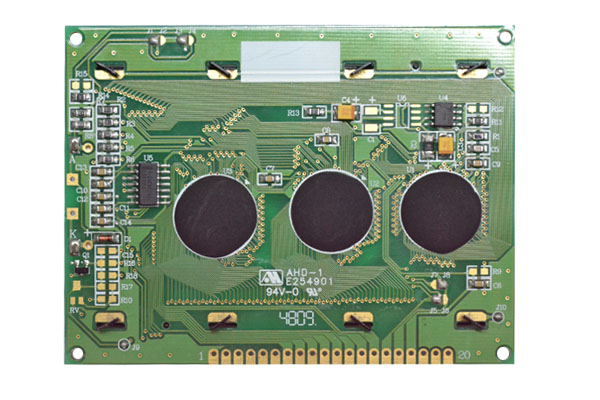

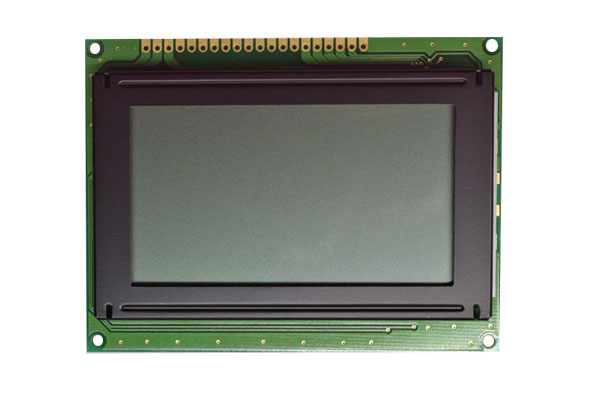

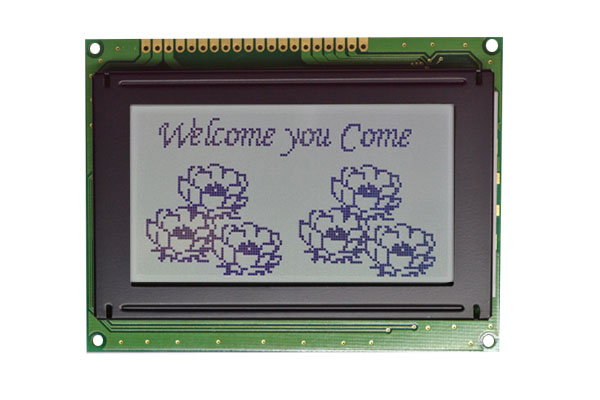

The features of LCD are as follows
* Display mode :STN/Blue/Transmissive/Negative
* Drive IC : SBN6400G& SBN0064G
* Interface Input Data : 6800 Series
* Driving Method : 1/64Duty, 1/6 Bias
* Viewing Direction : 6 O’clock
* Backlight : LED /White
*Sample NO. :G1206B5SGW6B-A0_01/20101102
For reference only. For design purposes, please use the specifications in the datasheet.

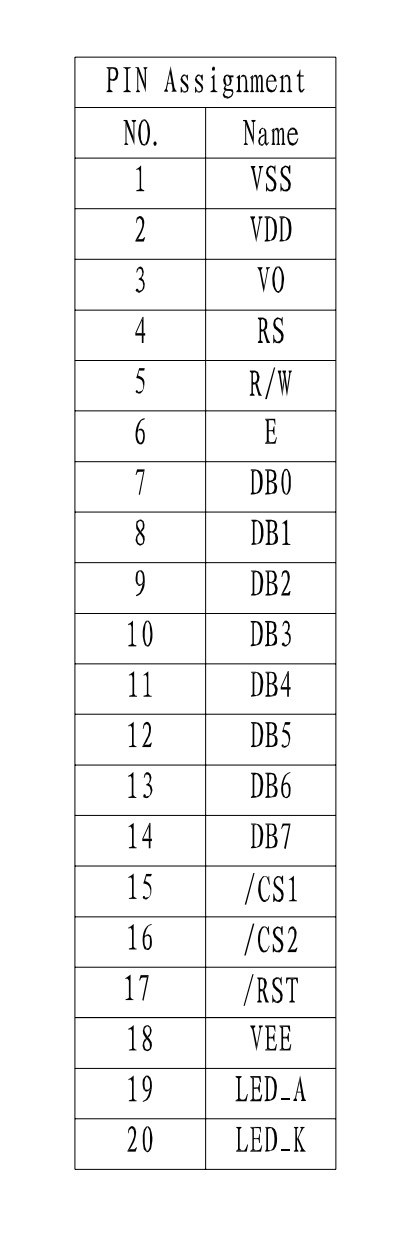

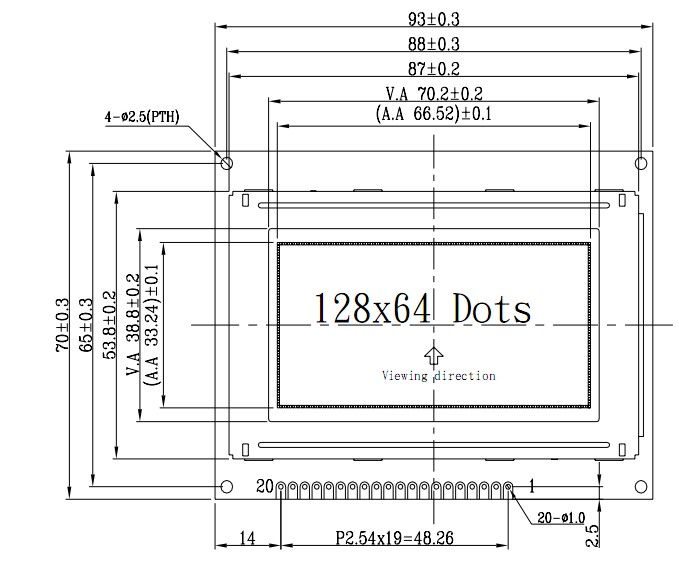

Physical Characteristics
| Column Dots x Row Dots |
128*64 |
| |

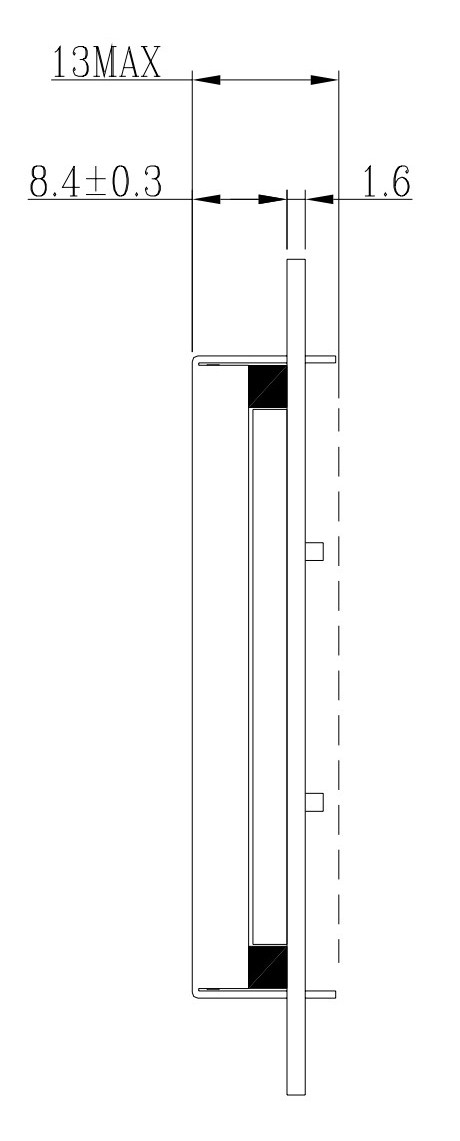

Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
93 |
70 |
13 |
70.2 |
38.8 |
66.52 |
33.24 |
| inches |
3.66 |
2.76 |
0.51 |
2.76 |
1.53 |
2.62 |
1.31 |
| |

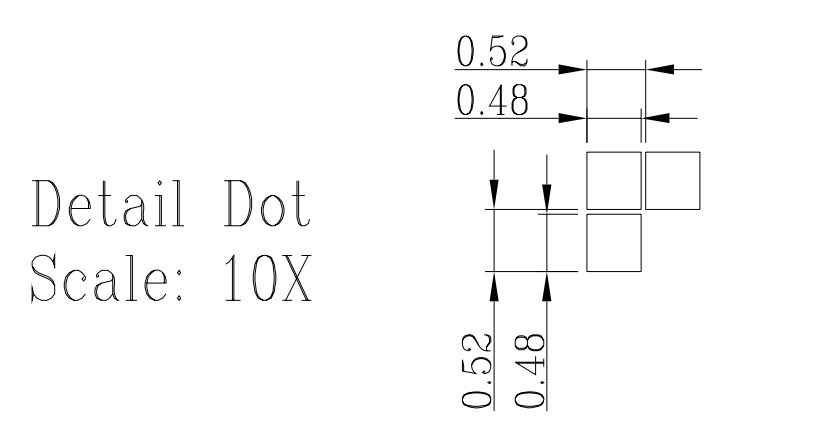

Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.48 |
0.48 |
0.52 |
0.52 |
| inches |
0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Blue |
Transmissive |
6:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~7.0 |
Logic Supply Voltage（V） |
5 |
| Supply Voltage For LCD Drive(V) |
-0.3~13 |
LCD Drive（V） |
8.0 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
15.5 |
| Backlight |
| Forward Current(mA) |
80 |
Forward Voltage(V) |
3.1 |
| Reverse Voltage(V) |
5 |
Average Luminous Intensity(cd/m2) |
200 |
| Power Dissipation(mW) |
264 |
|
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
