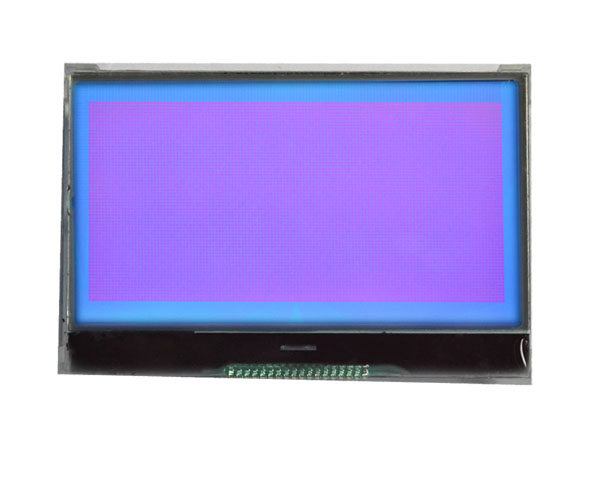

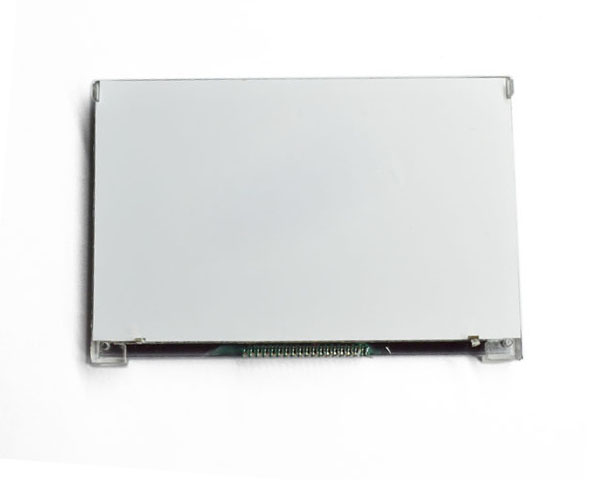

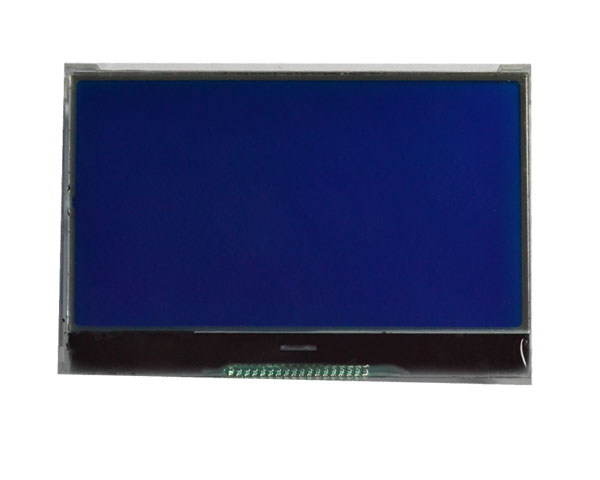

The features of LCD are as follows
* Display mode : FSTN/Transmissive/Negative
* Drive IC :ST7565R
* Interface Input Data : SPI-4
* Driving Method : 1/65Duty, 1/9Bias
* Viewing Direction : 6O’clock
* Backlight : LED/White
*Sample NO. : G1206J7FVW6G-A0_01/20110916
For reference only. For design purposes, please use the specifications in the datasheet.

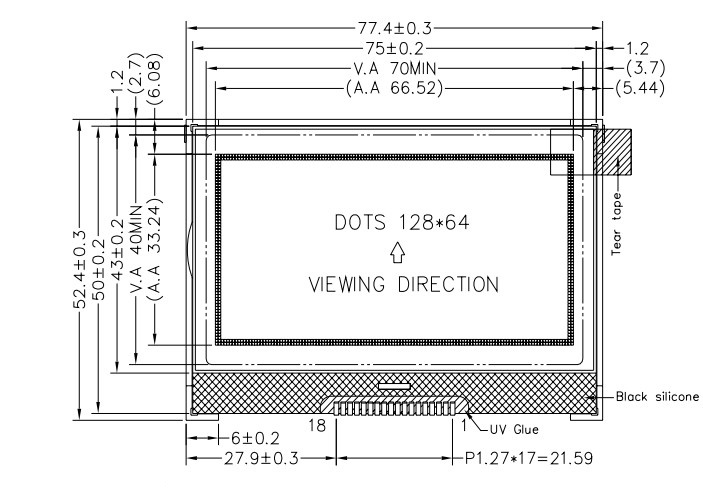

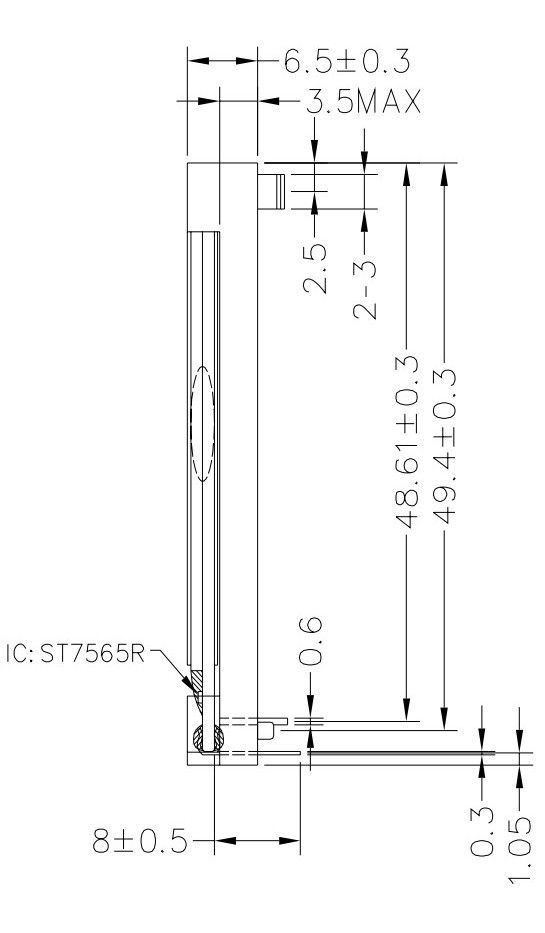

Physical Characteristics
| Column Dots x Row Dots |
128*64 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
77.4 |
52.4 |
6.5 |
70 |
40 |
66.52 |
33.24 |
| inches |
3.05 |
2.06 |
0.26 |
2.76 |
1.57 |
2.62 |
1.31 |
| |

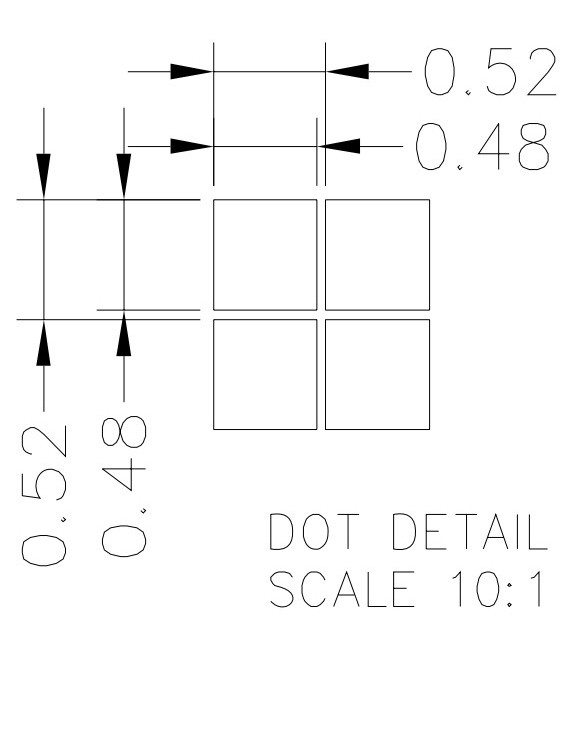

Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.48 |
0.48 |
0.52 |
0.52 |
| inches |
0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Addressing |
GlassType |
Polarizer |
View Direction |
| Passive |
FSTN |
Transmissive |
6:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~3.6 |
Logic Supply Voltage（V） |
3.0 |
| Supply Voltage For LCD Drive(V) |
-0.3~13.5 |
LCD Drive（V） |
9.1 |
| Backlight |
| Forward Current(mA) |
75 |
Forward Voltage(V) |
3.1 |
| Reverse Voltage(V) |
5 |
Average Luminous Intensity(cd/m2) |
200 |
| Power Dissipation(mW) |
400 |
|
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |

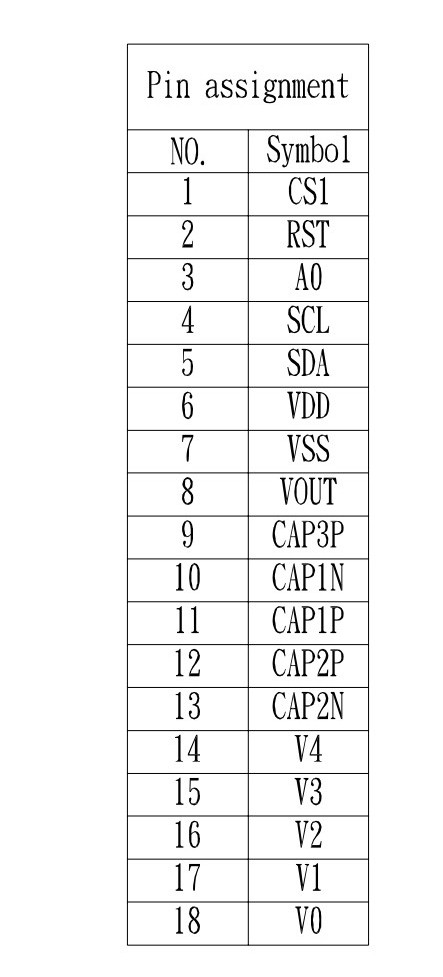

Electronics
