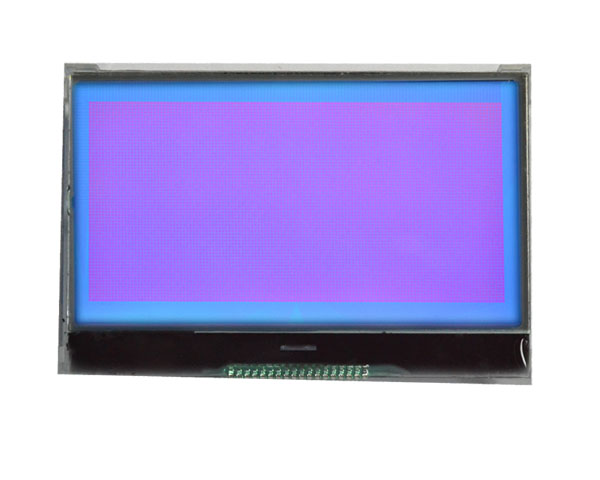

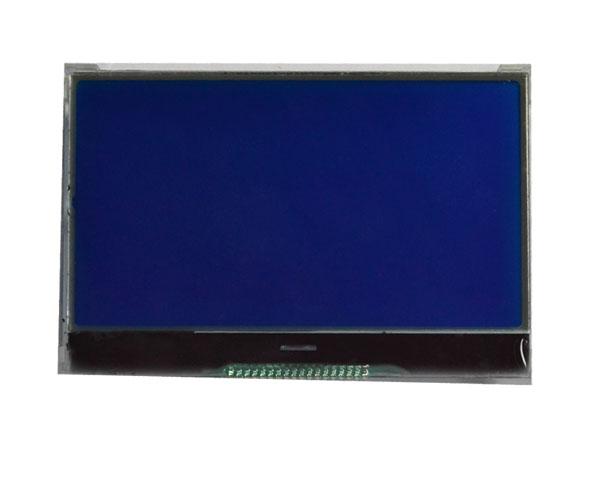

The features of LCD are as follows
* Display mode : FSTN/Transflective/positive
* Drive IC :ST7565R
* Interface Input Data : SPI-4
* Driving Method : 1/65Duty, 1/9Bias
* Viewing Direction : 6O’clock
* Backlight : LED/White
*Sample NO. : G1206J9FSW6G-A0_01/20110506
For reference only. For design purposes, please use the specifications in the datasheet.

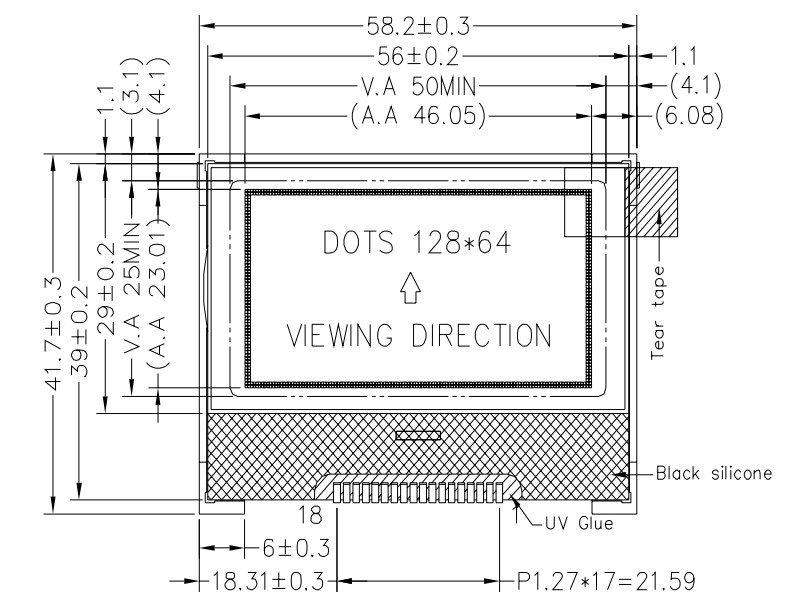

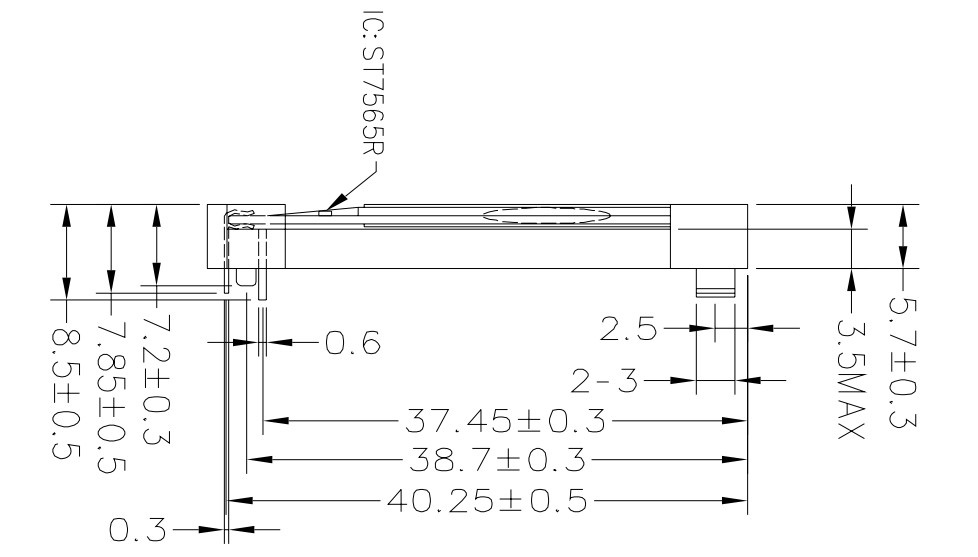

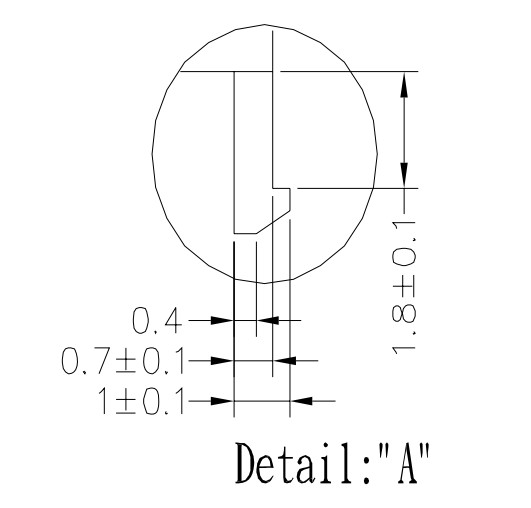

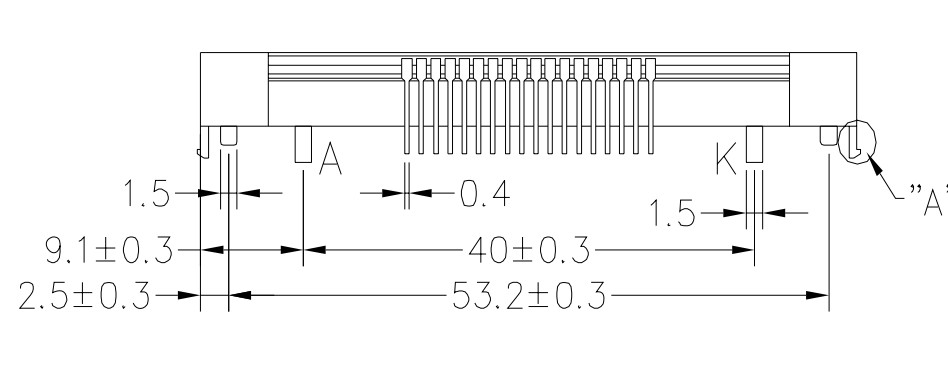

Physical Characteristics
| Column Dots x Row Dots |
128*64 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
58.2 |
41.7 |
5.7 |
50 |
25 |
46.05 |
23.01 |
| inches |
2.29 |
1.64 |
0.22 |
1.97 |
0.98 |
1.81 |
0.91 |
| |

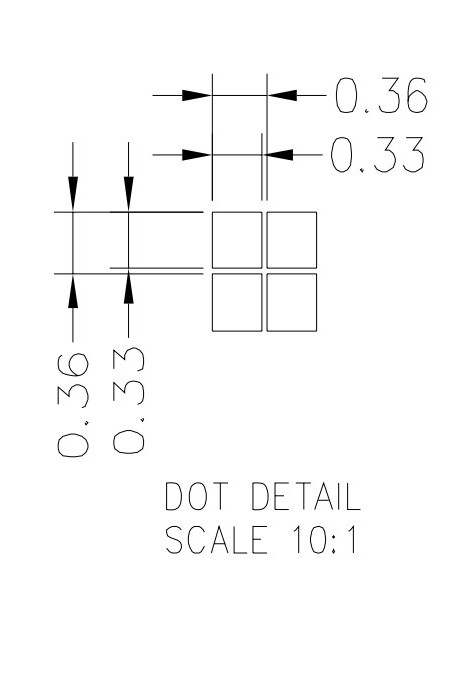

Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.33 |
0.33 |
0.36 |
0.36 |
| inches |
0.01 |
0.01 |
0.01 |
0.01 |
Optical Characteristics
| Display Addressing |
GlassTyp |
Polarizer |
View Direction |
| Passive |
FSTN |
Transflective |
6:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~3.6 |
Logic Supply Voltage（V） |
3 |
| Supply Voltage For LCD Drive(V) |
-0.3~13.5 |
LCD Drive（V） |
9 |
| Backlight |
| Forward Current(mA) |
60 |
Forward Voltage(V) |
3.1 |
| Reverse Voltage(V) |
5 |
Average Luminous Intensity(cd/m2) |
200 |
| Power Dissipation(mW) |
320 |
|
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |

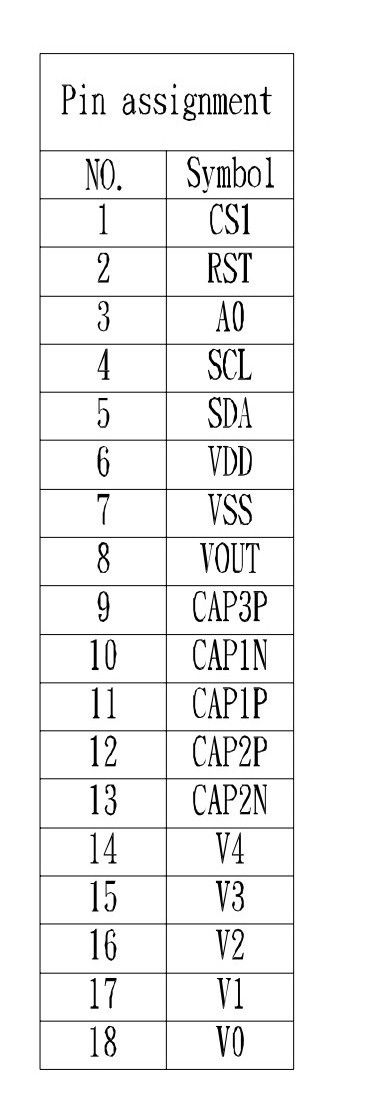

Electronics
