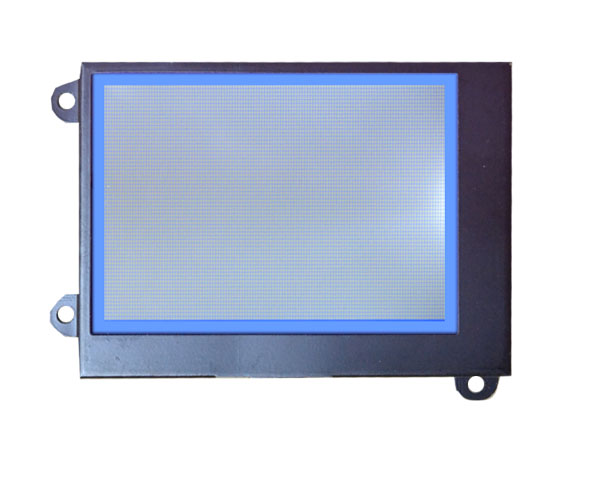

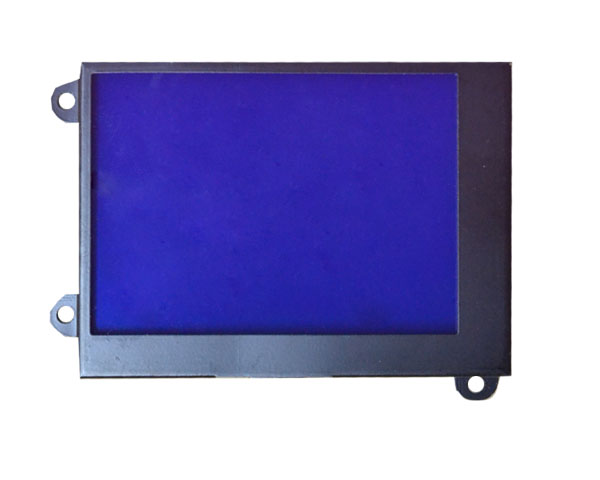

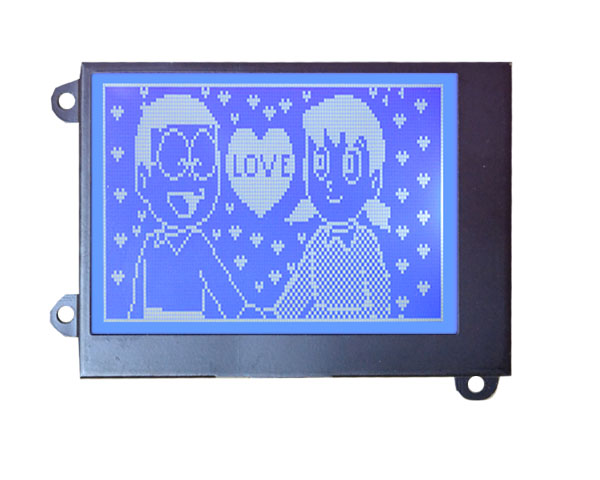

The features of LCD are as follows
* Display mode : STN/Blue/Transmissive/Negative
*DriveIC :ST7565R
* Interface Input Data : 6800,8080 Series or SPI-4
* Driving Method : 1/65Duty, 1/9Bias
* Viewing Direction : 6 O’clock
* Backlight :LED/White
For reference only. For design purposes, please use the specifications in the datasheet.

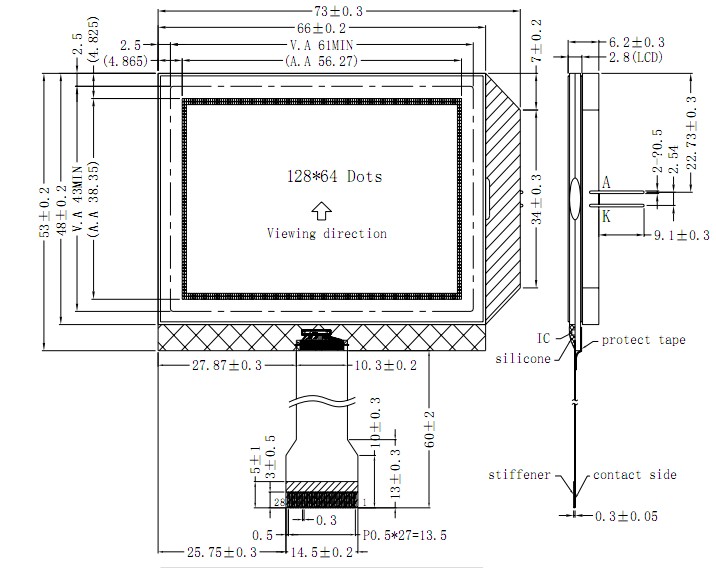

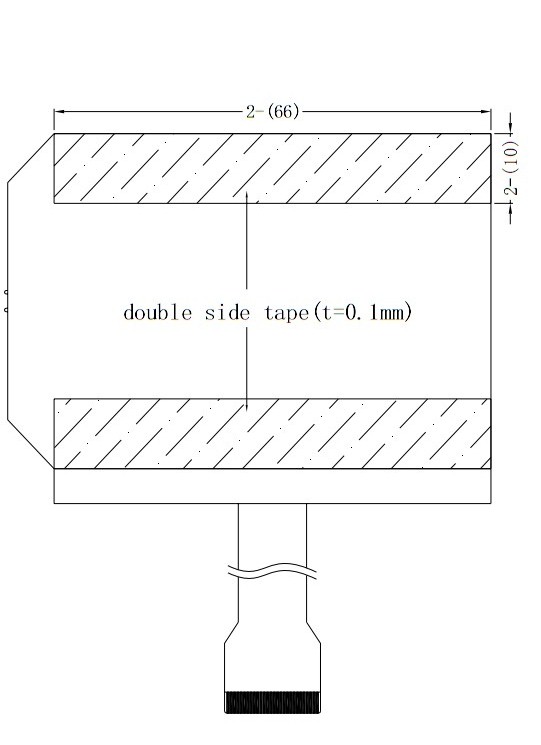

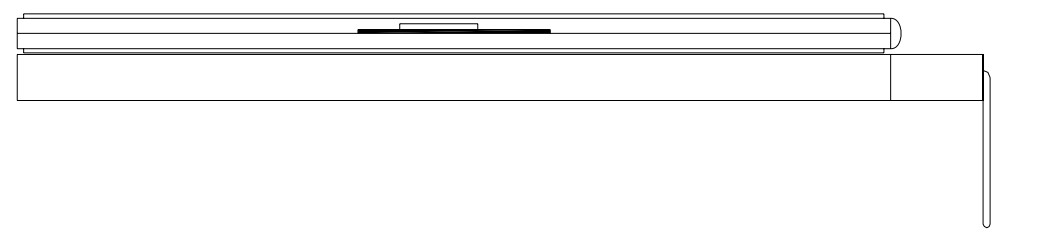

Physical Characteristics
| Column Dots x Row Dots |
128*64 |
| Module Overall |
Viewing Area |
Active Area |
| width |
height |
depth |
width |
height |
width |
height |
| 73 |
53 |
6.2 |
61 |
43 |
56.27 |
38.35 |
| 2.87 |
2.09 |
0.24 |
2.40 |
1.69 |
2.22 |
1.51 |

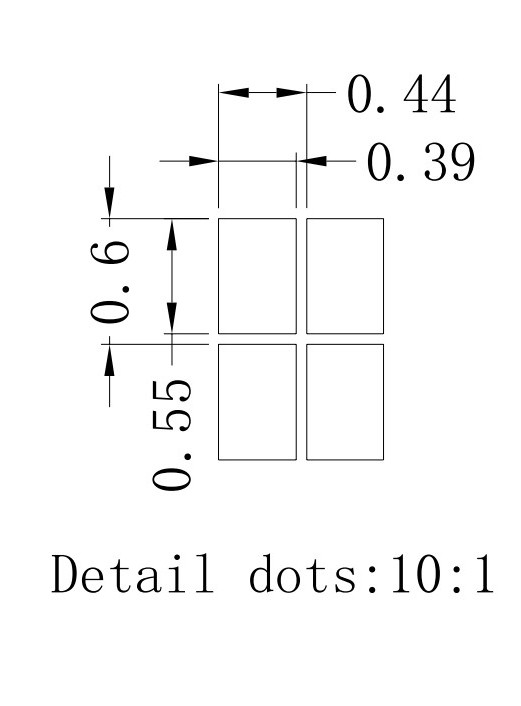

| Dot Size |
Dot Pitch |
| width |
height |
width |
height |
| 0.39 |
0.55 |
0.44 |
0.6 |
| 0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Blue |
Transmissive |
6:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~3.6 |
Logic Supply Voltage（V） |
3.3 |
| Supply Voltage For LCD Drive(V) |
-0.3~13.5 |
LCD Drive（V） |
10 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
13 |
| Backlight |
| Forward Current(mA) |
15 |
Forward Voltage(V) |
3.1 |
| Reverse Voltage(V) |
5 |
Average Luminous Intensity(cd/m2) |
50 |
| Power Dissipation(mW) |
48 |
|
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |

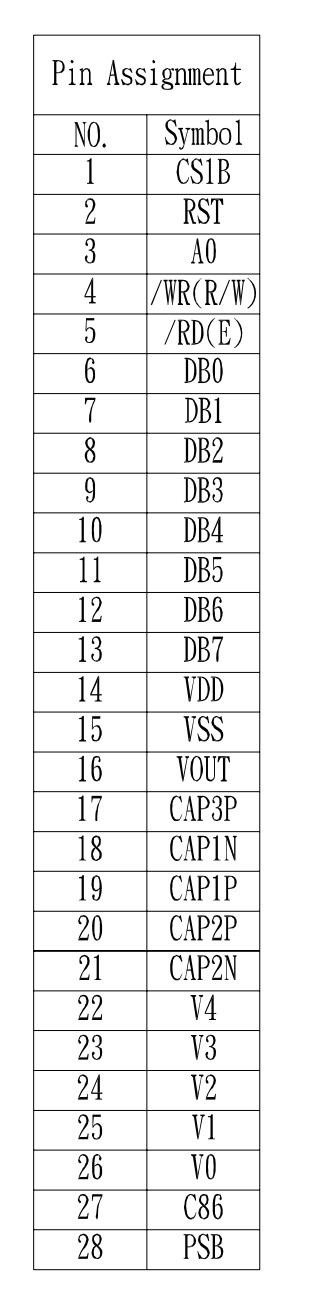

Electronics
| Interface |
6800,8080 Series or SPI-4 |
