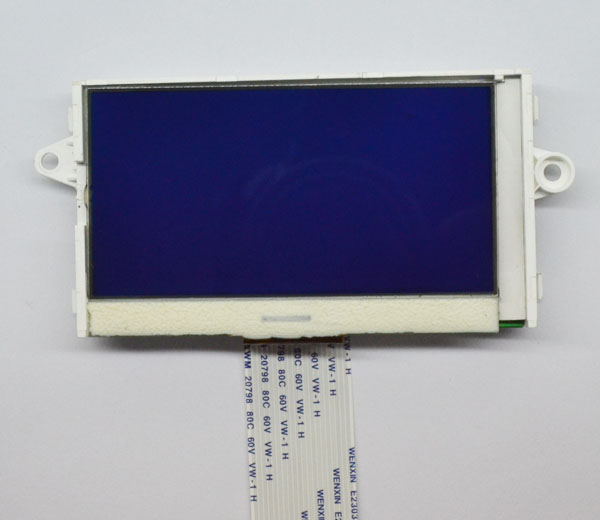

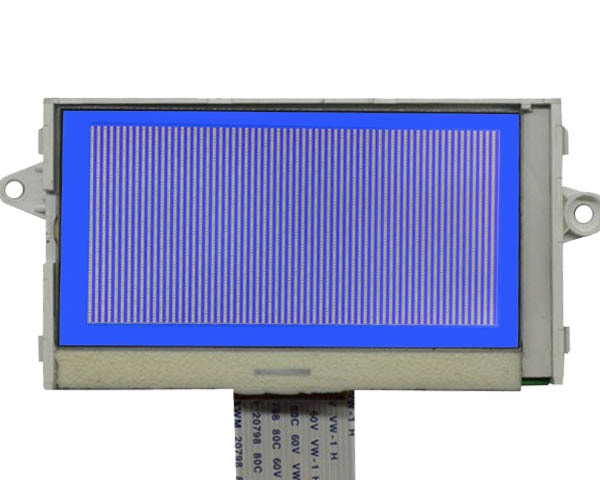

The features of LCD are as follows
* Display mode : STN/Blue/Transimissive/Negative
* Driver/ControllerIC : ST7565P
* Interface Input Data : 6800 or 8080 series or SPI-4
* Driving Method : 1/65Duty, 1/9Bias
* Viewing Direction : 6 O’clock
* Backlight : LED(White)
*Sample NO. : G1206P9SGW6G –B0_02/20100915
For reference only. For design purposes, please use the specifications in the datasheet.

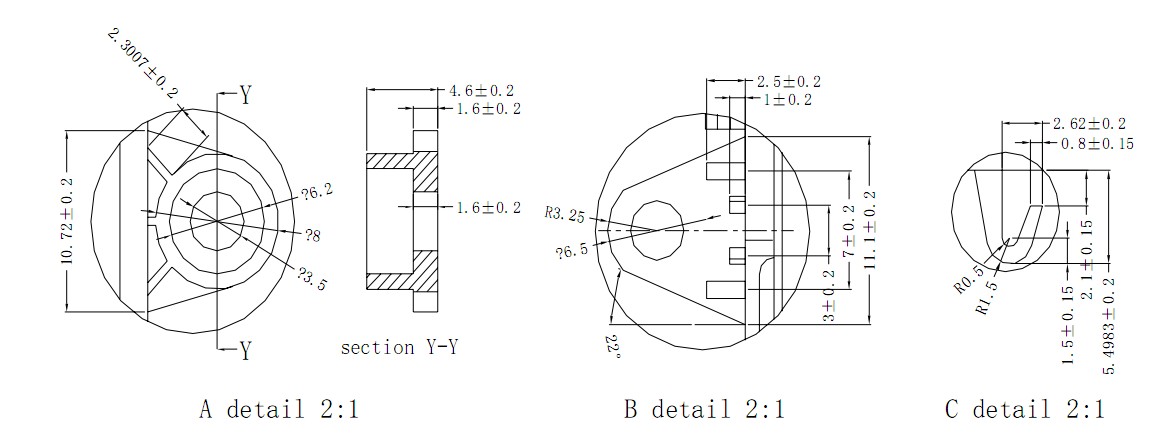

Physical Characteristics
| Column Dots x Row Dots |
128*64 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
87.5 |
49.3 |
7.8 |
73.6 |
37 |
66.52 |
33.24 |
| inches |
3.44 |
1.94 |
0.31 |
2.90 |
1.46 |
2.62 |
1.31 |
| |
Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.48 |
0.48 |
0.52 |
0.52 |
| inches |
0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Blue |
Transimissive |
6:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
0.3～3.6 |
Logic Supply Voltage（V） |
3.3 |
| Supply Voltage For LCD Drive(V) |
6.0~13.5 |
LCD Drive（V） |
9.0 |
| Input Voltage(V) |
4.0~13 |
Current Consumption(mA) |
0.74 |
| Backlight |
| Forward Current(mA) |
60 |
Forward Voltage(V) |
3.4 |
| Reverse Voltage(V) |
5 |
Average Luminous Intensity(cd/m2) |
250 |
| Power Dissipation(mW) |
272 |
|
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
Electronics
| Interface |
6800 or 8080 series or SPI-4 |
