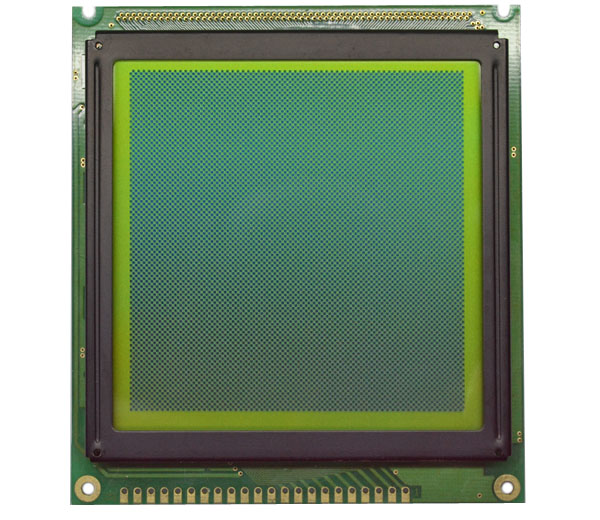

G1212A7SBX6B (128*128 Dots)

$0.00
$20.00
Avail ability: In Stock
Note: This product contains the price of test stand
-
+
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Product Description
  • Tech Specs
  • Notices
  • Dimensions
  • photo
  • Reviews

The features of LCD are as follows

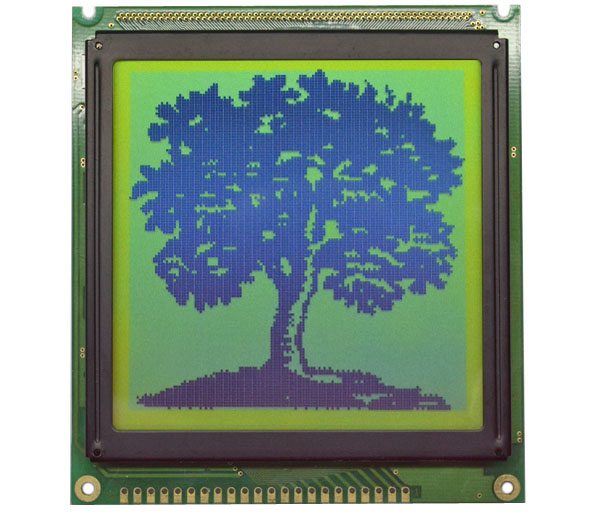

* Display mode             : STN/Yellow-green/Transflective/Positive

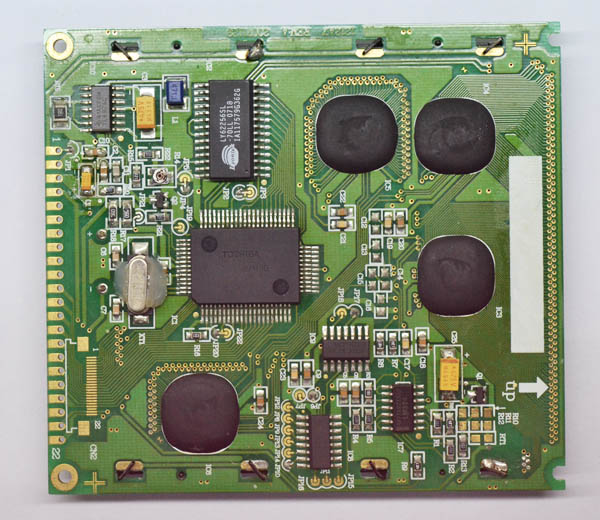

* ControllerIC                : T6963C
 *  Driver      IC                 :SDN8080G
* Interface Input Data    : 8080 Series
* Driving Method            : 1/128Duty, 1/12Bias
* Viewing Direction        : 6 O’clock

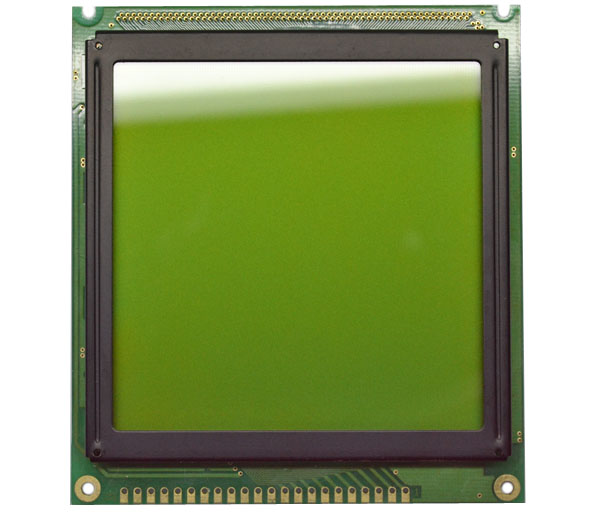

* Backlight                      : LED/Yellow-Green
 * Sample NO                :G1212A7SBX6B-A0_01/20100907


For reference only. For design purposes, please use the specifications in the datasheet.

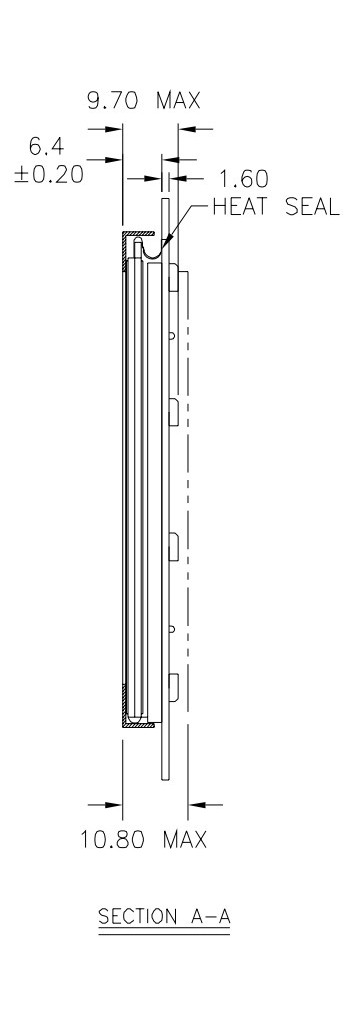

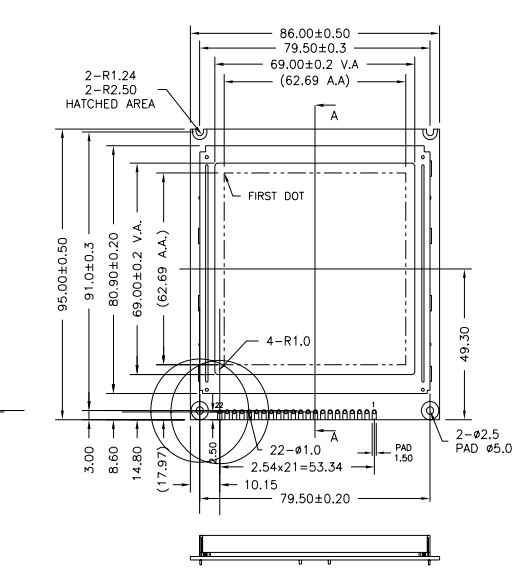

Physical Characteristics

Column Dots x Row Dots 128*128

  Module Overall Viewing Area Active Area
  width height depth width height width height
millimeters 86 95 9.7 69 69 62.69 62.69
inches 3.39 3.74 0.38 2.72 2.72 2.47 2.47

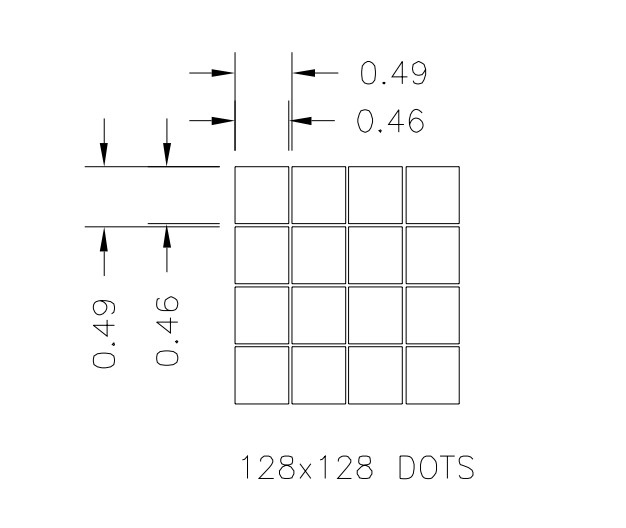

  Dot Size Dot Pitch
  width height width height
millimeters 0.46 0.46 0.49 0.49
inches 0.02 0.02 0.02 0.02

Optical Characteristics
Display Addressing GlassType/Glass Color Polarizer View Direction
Passive STN/Yellow-Green Transflective 6:00

Absolute maximum ratings Electrical characteristics
Supply Voltage For Lggic(V) -0.3~7.0 Logic Supply Voltage(V) 5.0
Supply Voltage For LCD Drive(V) 6~28 LCD Drive(V) 17.3
Input Voltage(V) -0.3~VDD+0.3 Current Consumption(mA) 56

Backlight
Forward Current(mA) 140 Forward Voltage(V) 2.1
Reverse Voltage(V) 5 Average Luminous Intensity(cd/m2) 9
Power Dissipation(mW) 350 Peak emission wavelength(nm) 572

Environmental
  Operating Temperatures Storage Temperatures
  min max min max
Celsius -10° 60° -20° 70°
Farenheit 14° 140° -4° 158°

Humidity
  min max
Non-condensing 0 90%

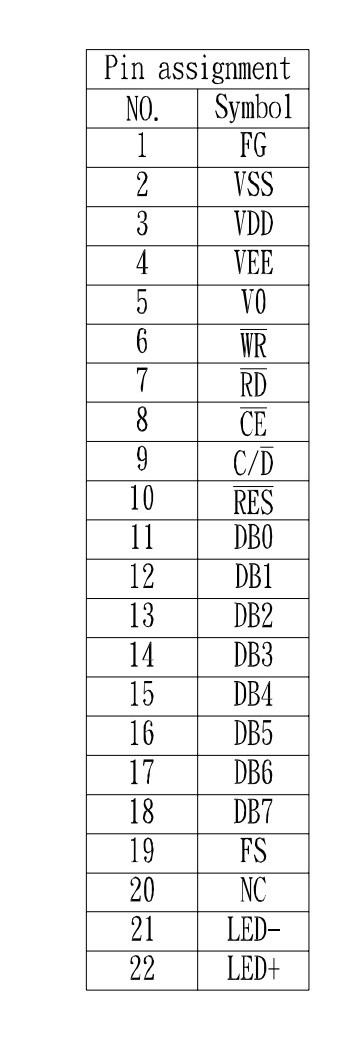

Electronics
Interface 8080 Series
