The features of LCD are as follows
* Display mode : STN/Gray,Transflective, Positive
* Drive IC :NT7508
* Interface Input Data : 6800series
* Driving Method : 1/128Duty, 1/12Bias
* Viewing Direction : 6 O’clock
* Backlight : LED Unit/White
*Sample NO. :G1212B2SKW6G-B0
For reference only. For design purposes, please use the specifications in the datasheet.

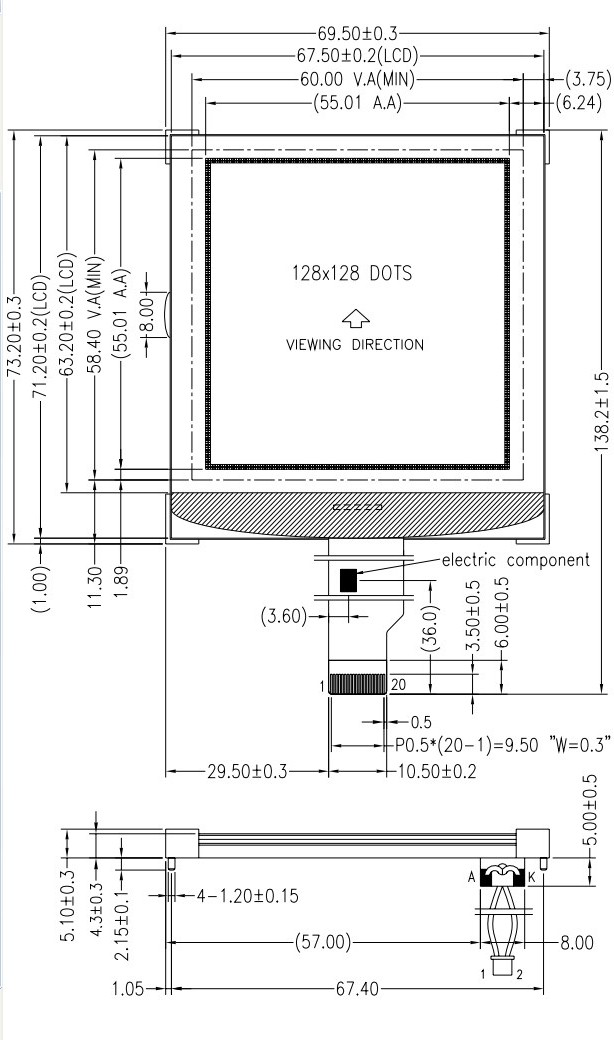

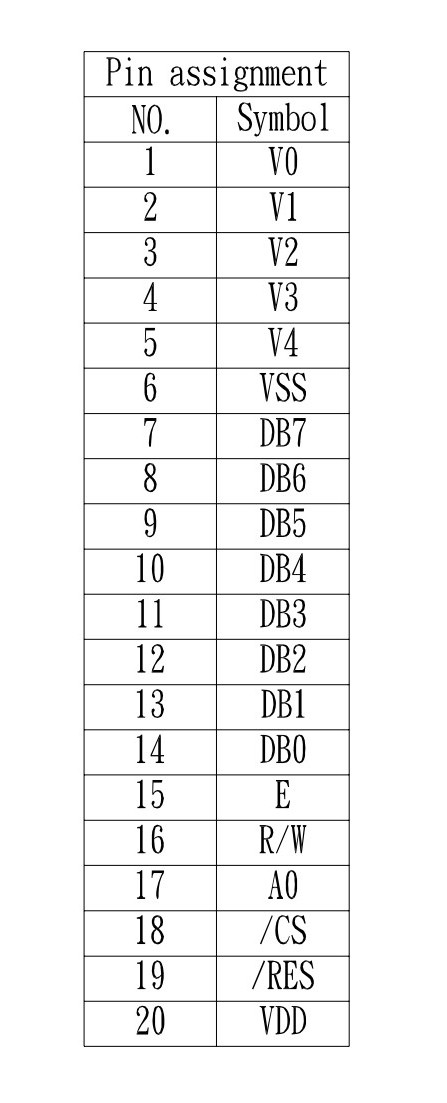

Physical Characteristics
| Column Dots x Row Dots |
128*128 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
69.5 |
73.2 |
5.1 |
60 |
58.4 |
55.01 |
55 |
| inches |
2.74 |
2.88 |
0.20 |
2.36 |
2.30 |
2.17 |
2.17 |
| |
Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.4 |
0.4 |
0.43 |
0.43 |
| inches |
0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Gray |
Transflective |
6:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3～4.0 |
Logic Supply Voltage（V） |
3.0 |
| Supply Voltage For LCD Drive(V) |
-0.3~15 |
LCD Drive（V） |
14.3 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
1.6 |
| Backlight |
| Forward Current(mA) |
100 |
Forward Voltage(V) |
3.1 |
| Reverse Voltage(V) |
5 |
Average Luminous Intensity(cd/m2) |
200 |
| Power Dissipation(mW) |
400 |
|
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
