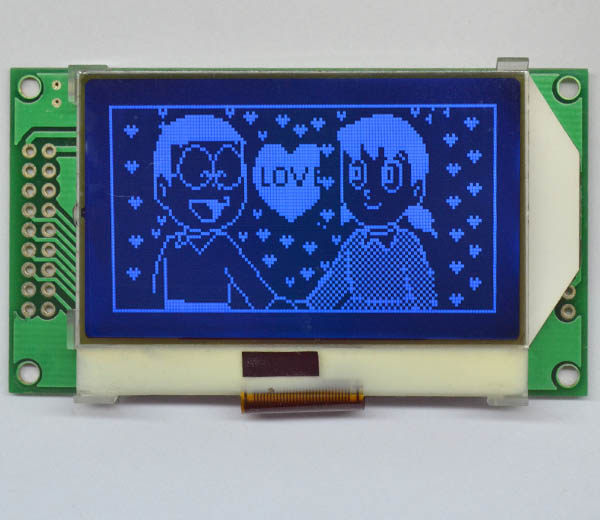

The features of LCD are as follows
* Display mode :FSTN,Transmissive,Negative
* Drive IC : SPLC501C
* Display format : 132X 64 Dots
* Interface Input Data : 8-Bitor SPI-4
* Driving Method : 1/65Duty, 1/9Bias
* Viewing Direction : 6 O’clock
* Backlight : Without
For reference only. For design purposes, please use the specifications in the datasheet.

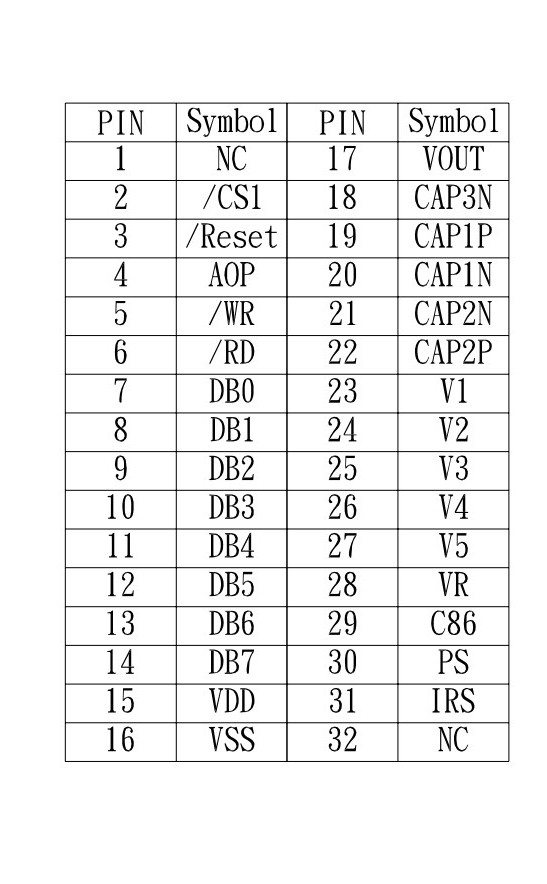

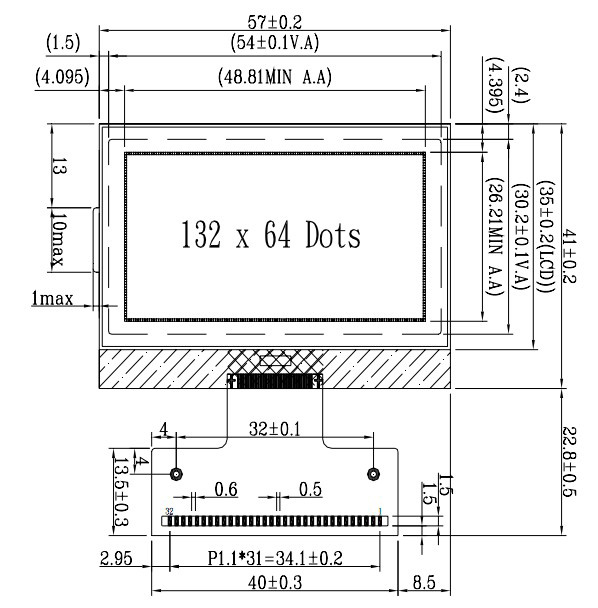

Physical Characteristics
| Column Dots x Row Dots |
132*64 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |

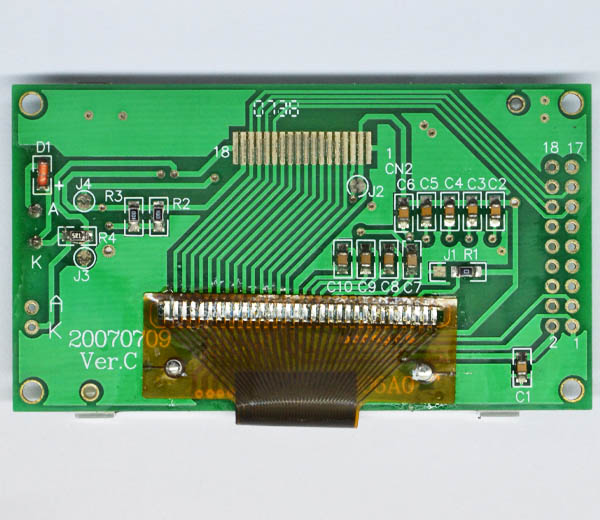

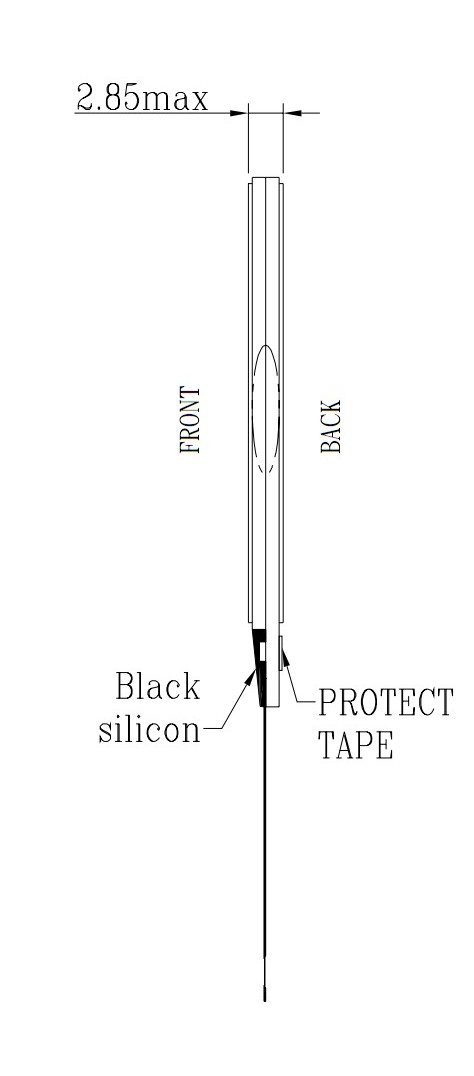

depth |
width |
height |
width |
height |
| millimeters |
57 |
41 |
2.85 |
54 |
30.2 |
48.81 |
26.21 |
| inches |
2.24 |
1.61 |
0.11 |
2.13 |
1.19 |
1.92 |
1.03 |
| |

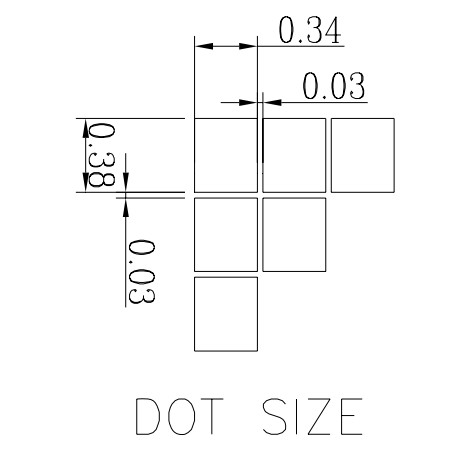

Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.3 |
0.38 |
0.37 |
0.41 |
| inches |
0.01 |
0.01 |
0.01 |
0.02 |
Optical Characteristics
| Display Addressing |
GlassType |
Polarizer |
View Direction |
| Passive |
FSTN |
Transmissive |
6:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3～7.0 |
Logic Supply Voltage（V） |
3.3 |
| Supply Voltage For LCD Drive(V) |
-0.3~12 |
LCD Drive（V） |
8.4 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
|
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
