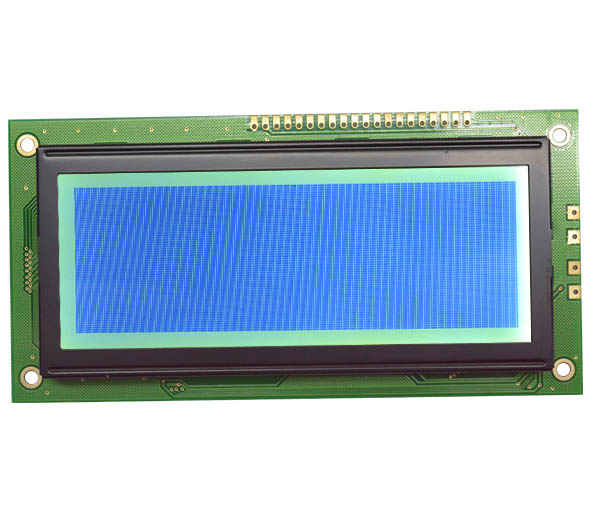

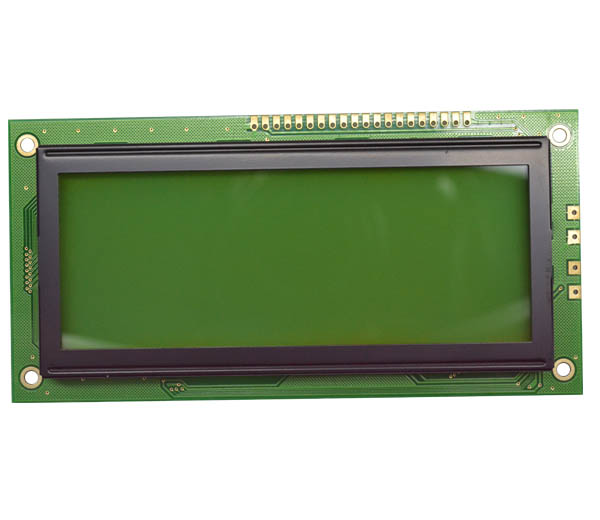

The features of LCD are showed as follows
* Display mode :STN/Y-G/Transmissive/Positive
* Driver/ControllerIC :AIP31107&AIP31108
* Interface Input Data : 8-Bits
* Driving Method : 1/64DUTY 1/9BIAS
* Viewing Direction : 6 O’clock
* Backlight : LED White
*Sample NO. :G1906A0SCW1B-B0_01/20110526
For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics
| Column Dots x Row Dots |
192*64 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
130 |
65 |
12.8 |
104 |
39 |
97.486 |
32.462 |
| inches |
5.118 |
2.559 |
0.504 |
4.094 |
1.535 |
3.838 |
1.278 |
| |

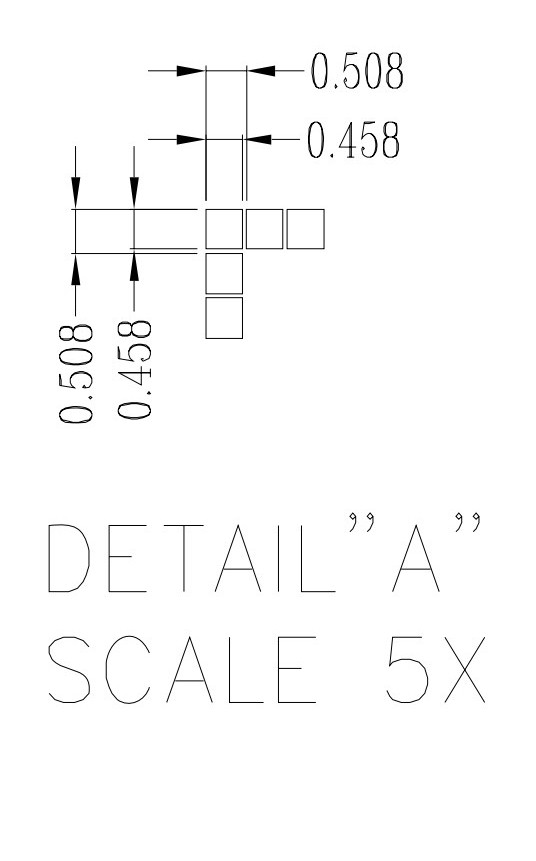

Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.458 |
0.458 |
0.508 |
0.508 |
| inches |
0.018 |
0.018 |
0.020 |
0.020 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Yellow-Green |
Transmissive |
6:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3～7.0 |
Logic Supply Voltage（V） |
5.0 |
| Supply Voltage For LCD Drive(V) |
VEE-0.3～VDD+0.3 |
LCD Drive（V） |
10 |
| Backlight |
| Forward Current(mA) |
90 |
Forward Voltage(V) |
3.3 |
| Reverse Voltage(V) |
5 |
Average Luminous Intensity(cd/m2) |
300 |
| Power Dissipation(mW) |
450 |
|
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-10° |
55° |
-20° |
70° |
| Farenheit |
14° |
131° |
-4° |
158° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
