G1906A5SGW6B (192*64 Dots)

$0.00
$20.00
Avail ability: In Stock
Note: This product contains the price of test stand
-
+
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Product Description
  • Tech Specs
  • Notices

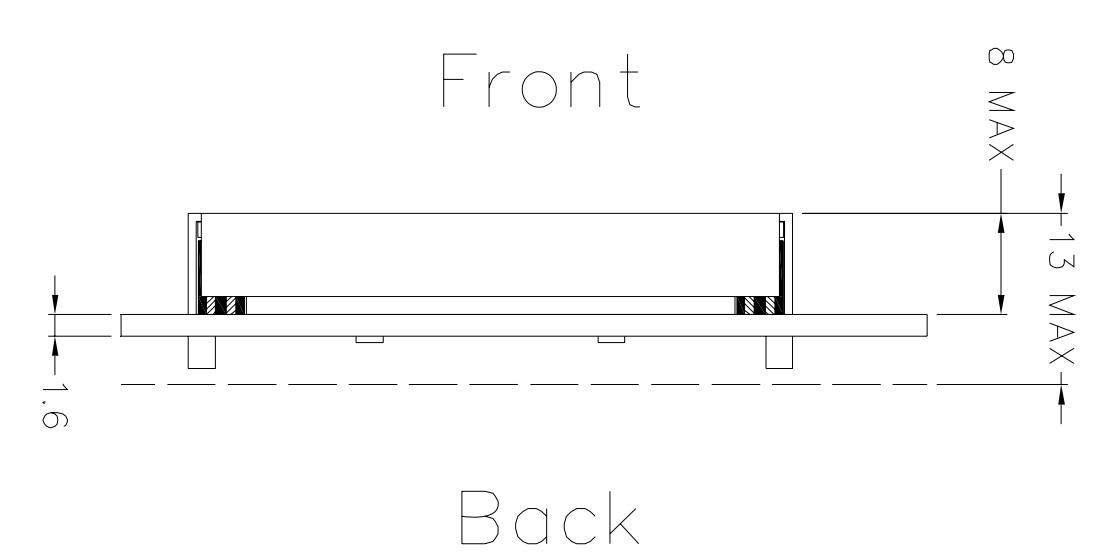

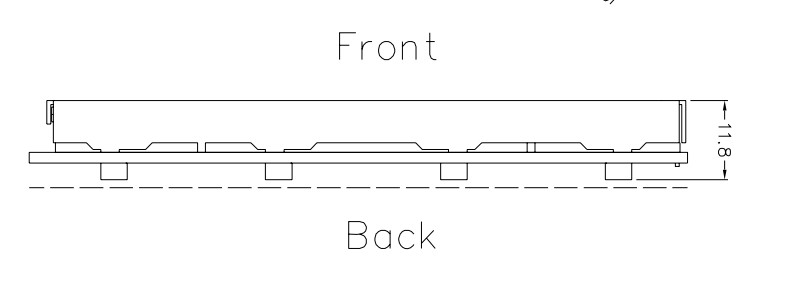

  • Dimensions

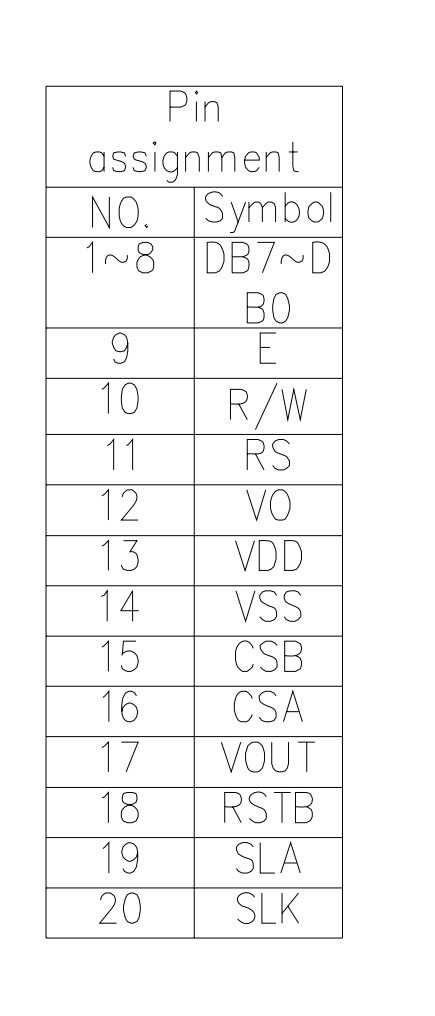

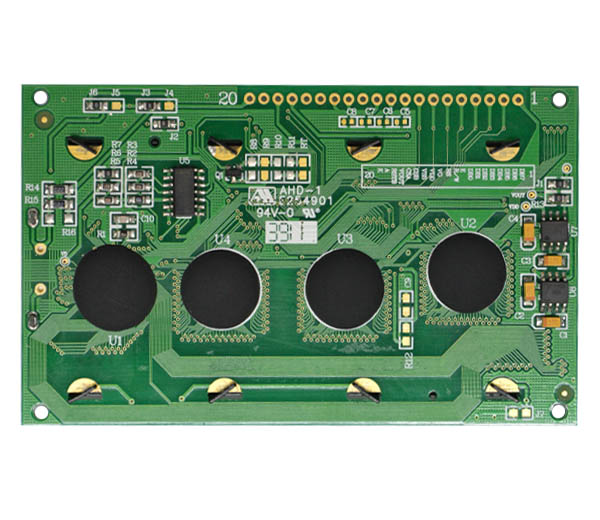

  • photo
  • Reviews

The features of LCD are as follows
* Display mode             :STN/Blue/Transmissive/Negative
* Drive IC                       : SBN6400G& SBN0064G
* Interface Input Data    : 8-bits
* Driving Method           : 1/64Duty, 1/9 Bias
* Viewing Direction        : 6 O’clock
* Backlight                     : LED /Side White

For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics

Column Dots x Row Dots 192*64

  Module Overall Viewing Area Active Area
  width height depth width height width height
millimeters 100 60 13 84 31 78.67 26.19
inches 3.94 2.36 0.51 3.31 1.22 3.10 1.03

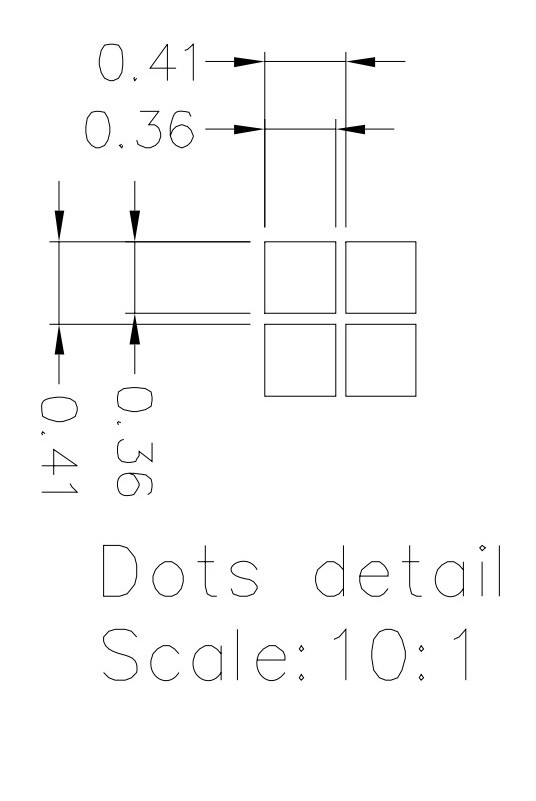

  Dot Size Dot Pitch
  width height width height
millimeters 0.36 0.36 0.41 0.41
inches 0.01 0.01 0.02 0.02

Optical Characteristics
Display Addressing GlassType/Glass Color Polarizer View Direction
Passive STN/Blue Transmissive 6:00

Absolute maximum ratings Electrical characteristics
Supply Voltage For Lggic(V) -0.3~7.0 Logic Supply Voltage(V) 5

Supply Voltage For LCD Drive(V) -0.3~13 LCD Drive(V) 13
Input Voltage(V) -0.3~VDD+0.3 Current Consumption(mA) 4

Backlight
Forward Current(mA) 45 Forward Voltage(V) 4.5
Reverse Voltage(V) 5 Average Luminous Intensity(cd/m2) 100
Power Dissipation(mW) 202.5

Environmental
  Operating Temperatures Storage Temperatures
  min max min max
Celsius -20° 70° -30° 80°
Farenheit -4° 158° -22° 176°

Humidity
  min max
Non-condensing 0 90%

Electronics
Interface 8 Bit
