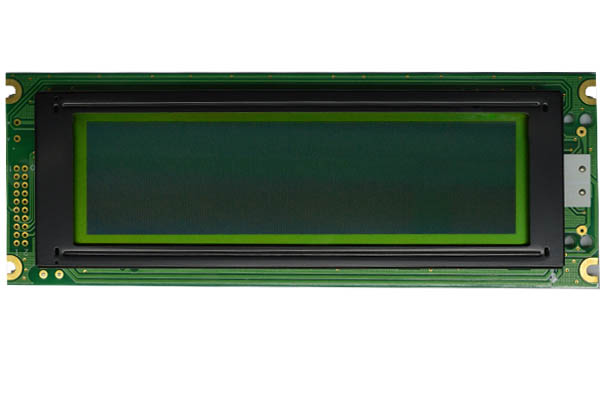

The features of LCD are as follows
* Display mode : STN/Y-G /Tranflective/Positvie
* Drive IC : T6963C/SDN8080G
* Interface : 8080 8-Bit MPU Interface
* Driving Method : 1/64Duty, 1/9 Bias
* Viewing Direction : 12O’clock
* Backlight :LED /Y-G
*Sample NO : G2406A6SBY6B-B0_01/20110718
For reference only. For design purposes, please use the specifications in the datasheet.

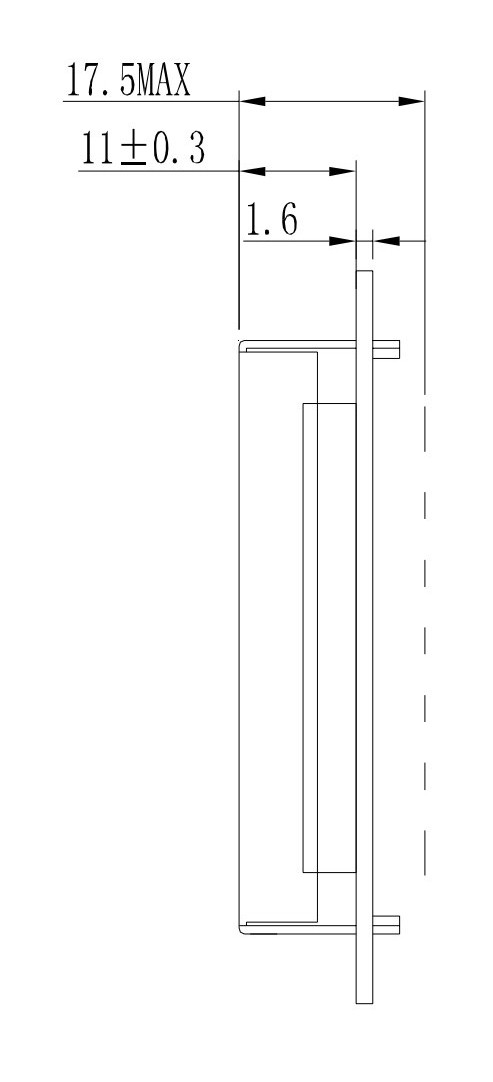

Physical Characteristics
| Column Dots x Row Dots |
240*64 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
180 |
65 |
17.5 |
133 |
39 |
127.16 |
33.88 |
| inches |
7.09 |
2.56 |
0.69 |
5.24 |
1.54 |
5.01 |
1.33 |
| |
Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.49 |
0.49 |
0.53 |
0.53 |
| inches |
0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Yellow-Green |
Tranflective |
12:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3～7.0 |
Logic Supply Voltage（V） |
5 |
| Supply Voltage For LCD Drive(V) |
0~3.2 |
LCD Drive（V） |
12 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
54 |
| Backlight |
| Forward Current(mA) |
450 |
Forward Voltage(V) |
4.1 |
| Reverse Voltage(V) |
10 |
Average Luminous Intensity(cd/m2) |
100 |
| Power Dissipation(mW) |
1350 |
Peak emission wavelength(nm) |
570 |
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
Electronics

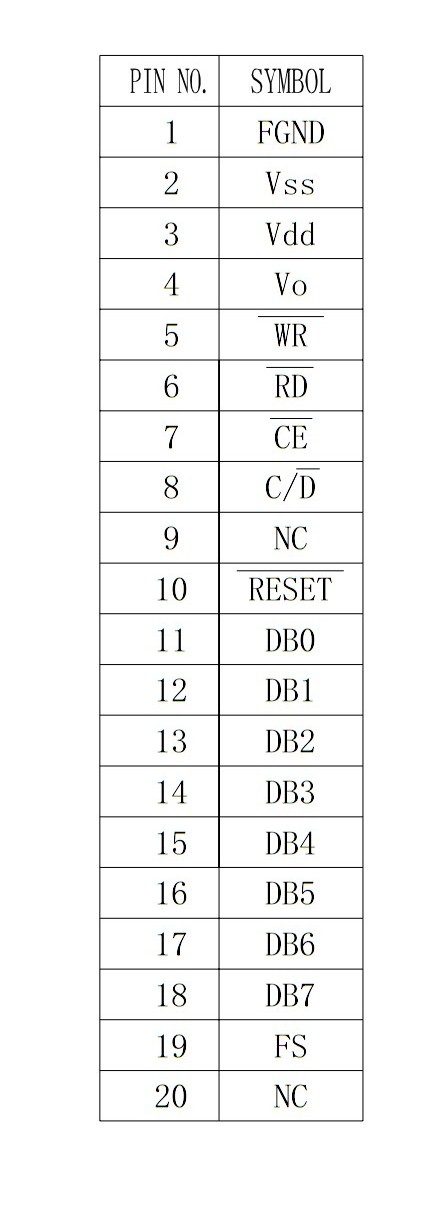

| Interface |
8080 8-Bit MPU Interface |
