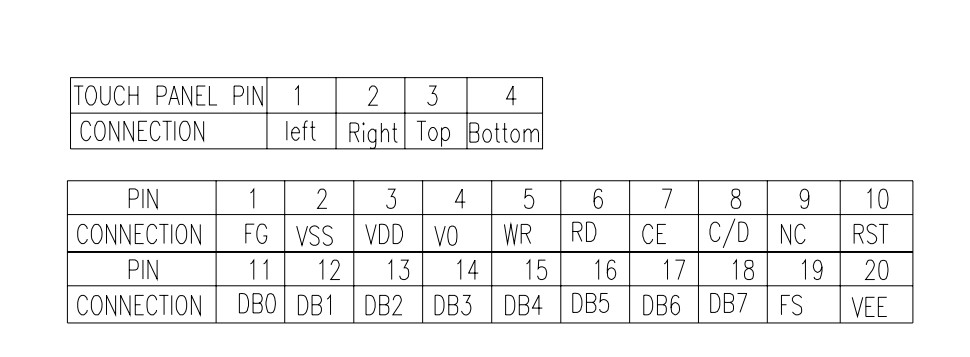

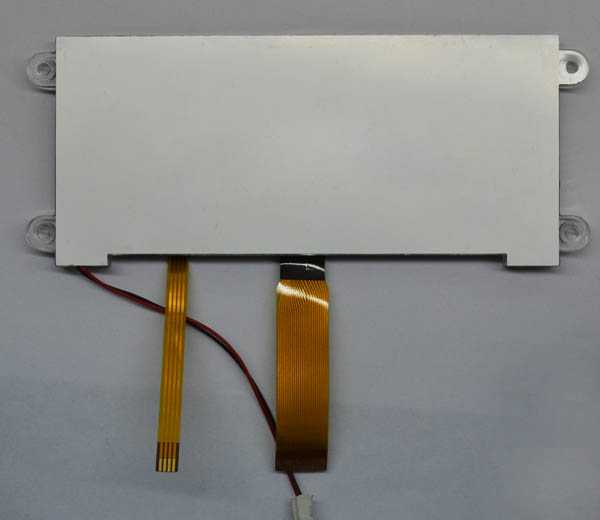

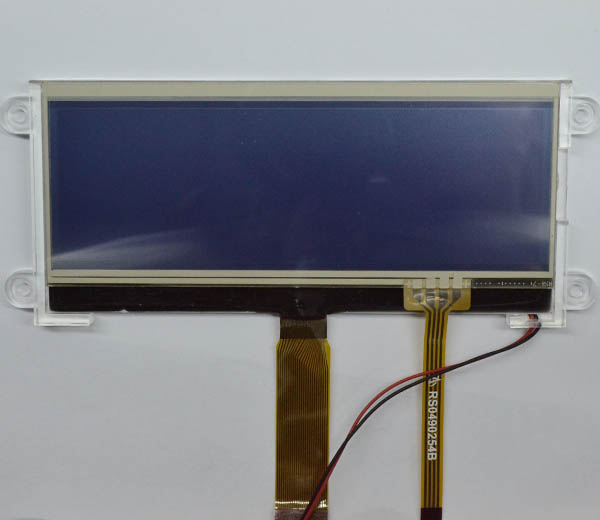

The features of LCD are as follows
* Display mode :STN/Y-G, Positive, Reflective
* Drive IC : T6963C,SDN8080G
* Display format : 240X 64Dots
* Interface Input Data : 8-Bit
* Driving Method : 1/64Duty, 1/9 Bias
* Viewing Direction : 6 O’clock
* Backlight : Without
For reference only. For design purposes, please use the specifications in the datasheet.

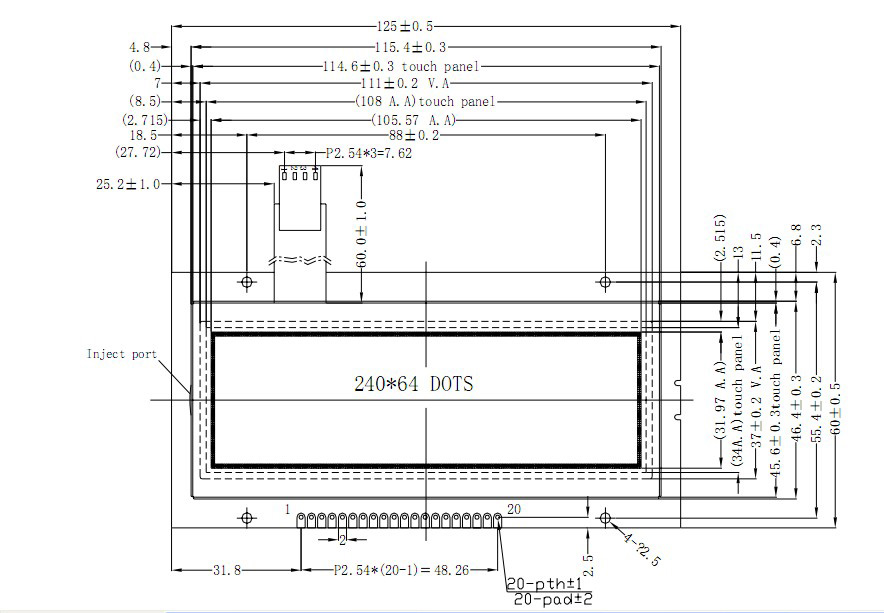

Physical Characteristics
| Column Dots x Row Dots |
240*64 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
125 |
60 |
13 |
111 |
37 |
105.57 |
31.97 |
| inches |
4.92 |
2.36 |
0.51 |
4.37 |
1.46 |
4.16 |
1.26 |
| |

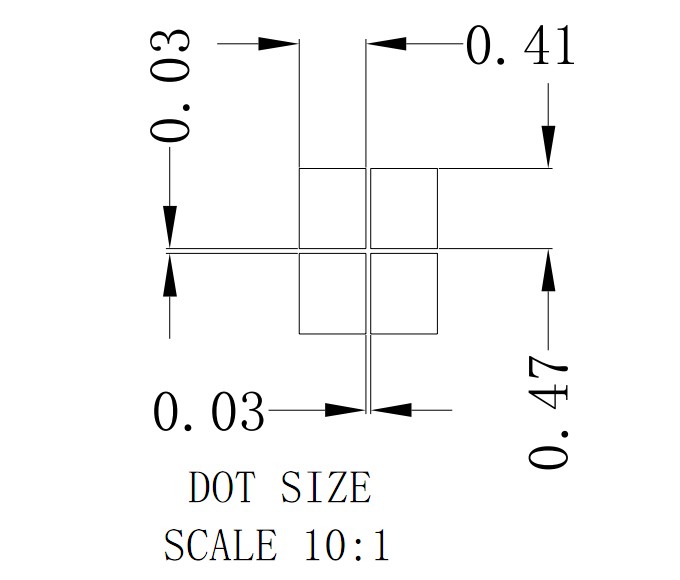

Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.41 |
0.47 |
0.44 |
0.5 |
| inches |
0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Yellow-Green |
Reflective |
6:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3～7 |
Logic Supply Voltage（V） |
5
|
| Supply Voltage For LCD Drive(V) |
6~28 |
LCD Drive（V） |
12 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
14 |
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-10° |
60° |
-20° |
70° |
| Farenheit |
14° |
140° |
-4° |
158° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
