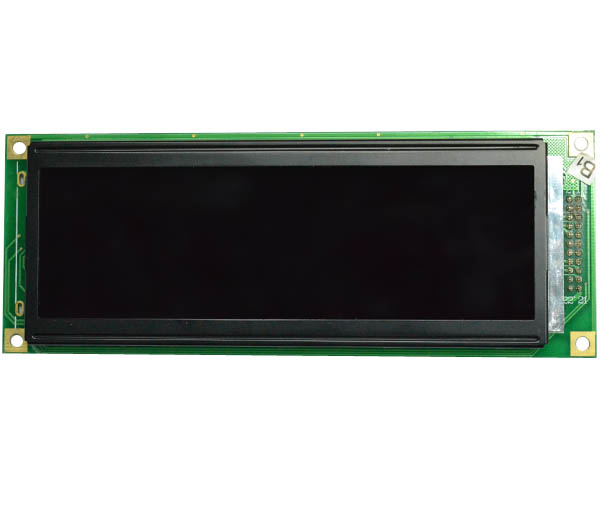

The features of LCD are as follows
* Display mode : FSTN/Transmissive/Negative
* Drive IC : RA6963C/SDN8080G
* Interface : 8080 8-Bit MPU Interface
* Driving Method : 1/64Duty, 1/9 Bias
* Viewing Direction : 6 O’clock
* Backlight :LED Red(Side)
For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics
| Column Dots x Row Dots |
240*64 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
135.6 |
51.2 |
10.9 |
111 |
34 |
105.56 |
28.12 |
| inches |
5.34 |
2.02 |
0.43 |
4.37 |
1.34 |
4.16 |
1.11 |
| |
Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.4 |
0.4 |
0.44 |
0.44 |
| inches |
0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Addressing |
GlassType |
Polarizer |
View Direction |
| Passive |
FSTN |
Transmissive |
6:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~7.0 |
Logic Supply Voltage（V） |
5.0 |
| Supply Voltage For LCD Drive(V) |
0~32 |
LCD Drive（V） |
12.5 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
23 |
| Backlight |
| Forward Current(mA) |
60 |
Forward Voltage(V) |
2.7 |
| Reverse Voltage(V) |
4 |
Average Luminous Intensity(cd/m2) |
140 |
| Power Dissipation(mW) |
162 |
Peak emission wavelength(nm) |
625 |
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |

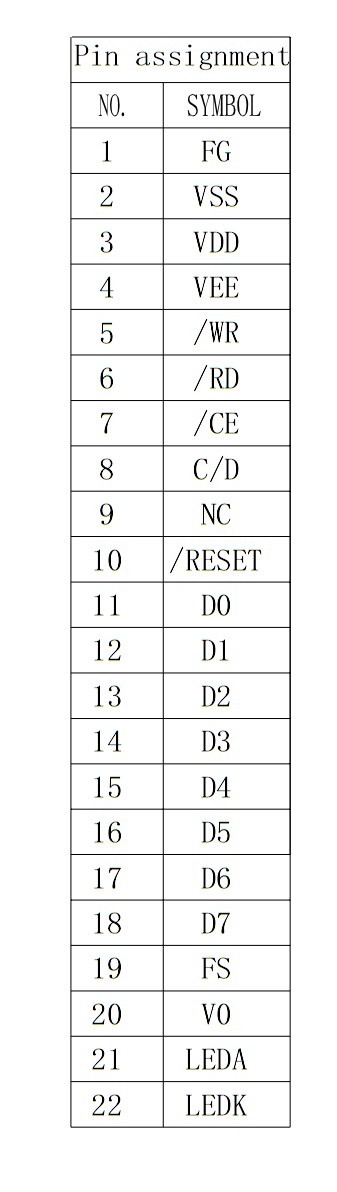

Electronics
| Interface |
8080 8-Bit MPU Interface |
