The features of LCD are as follows
* Display mode : STN/Blue/Transmissive/ Negative
* IC : UC1608
* Interface Input Data :6800-4bit/8bit,8080-4bit/8bit,3-wire SPI w/9-bit,4-wire-SPI w/8-bit,3/4wire SPI w/8-bit
* Driving Method : 1/64Duty, 1/9 Bias
* Viewing Direction : 6 O’clock
* Backlight :LED /WHITE
*Sample NO : G2406B1SGW1G-A0_01/20110127
For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics
| Column Dots x Row Dots |
240*64 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |

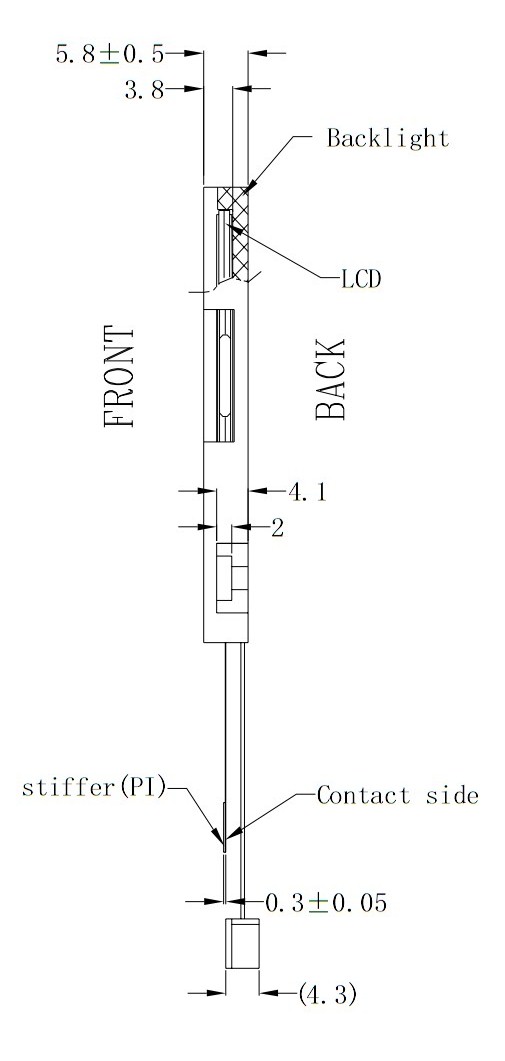

depth |
width |
height |
width |
height |
| millimeters |
126.2 |
55.1 |
5.8 |
111 |
37 |
105.57 |
31.97 |
| inches |
4.97 |
2.17 |
0.23 |
4.37 |
1.46 |
4.16 |
1.26 |
| |
Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.41 |
0.47 |
0.44 |
0.5 |
| inches |
0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Blue |
Transmissive |
6:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~4.0 |
Logic Supply Voltage（V） |
3
|
| Supply Voltage For LCD Drive(V) |
-0.3~17 |
LCD Drive（V） |
13.3 |
| Input Voltage(V) |
-0.4~VDD+0.5 |
Current Consumption(mA) |
0.86 |
| Backlight |
| Forward Current(mA) |
90 |
Forward Voltage(V) |
3.0 |
| Reverse Voltage(V) |
5 |
Average Luminous Intensity(cd/m2) |
250 |
| Power Dissipation(mW) |
720 |
|
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-10° |
60° |
-20° |
70° |
| Farenheit |
14° |
140° |
-4° |
158° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |

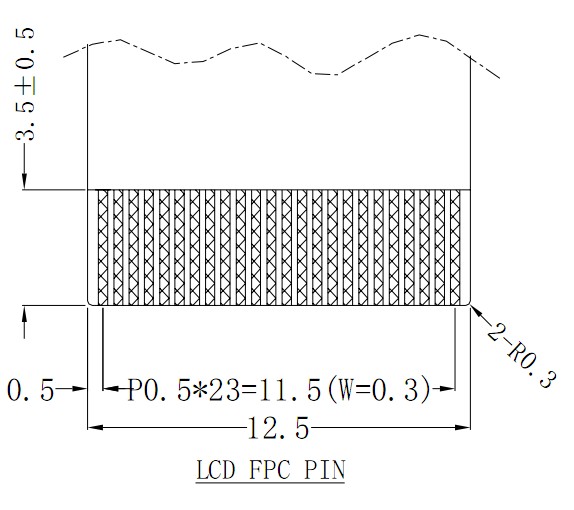

Electronics

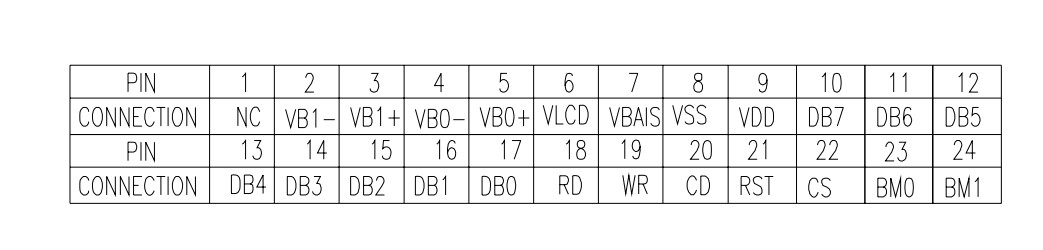

| Interface |
6800-4bit/8bit,8080-4bit/8bit,3-wire SPI w/9-bit,4-wire-SPI w/8-bit,3/4wire SPI w/8-bit |
