The features of LCD are as follows
* Display mode : STN/blue, Transmissive,Negative
* ControllerIC : T6963C/SDN8080G
* Display format : 240*80 dots
* Interface Input Data : 8- Bits
* Driving Method : 1/80Duty, 1/10Bias
* Viewing Direction : 6 O’clock
* Backlight : LED side(white)
For reference only. For design purposes, please use the specifications in the datasheet.

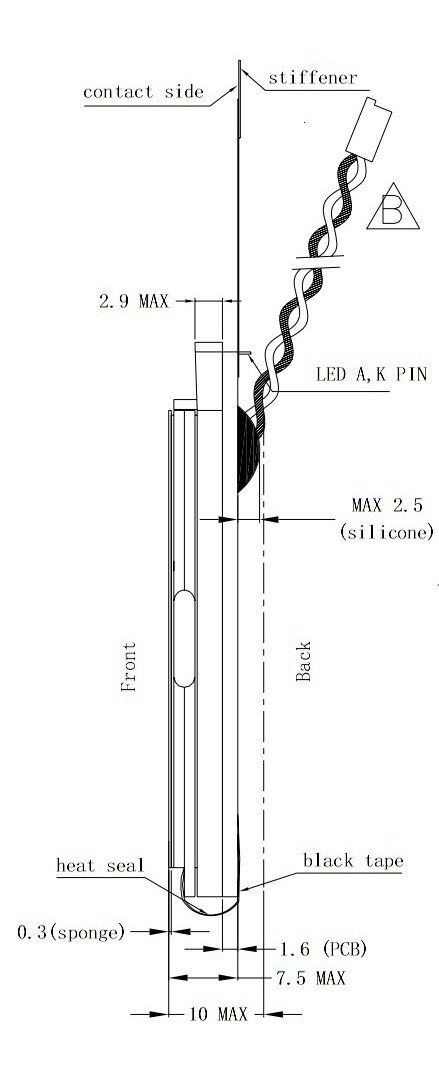

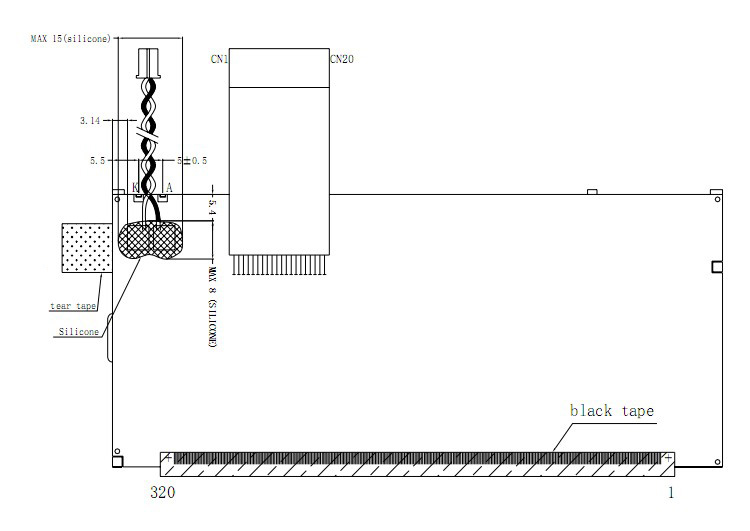

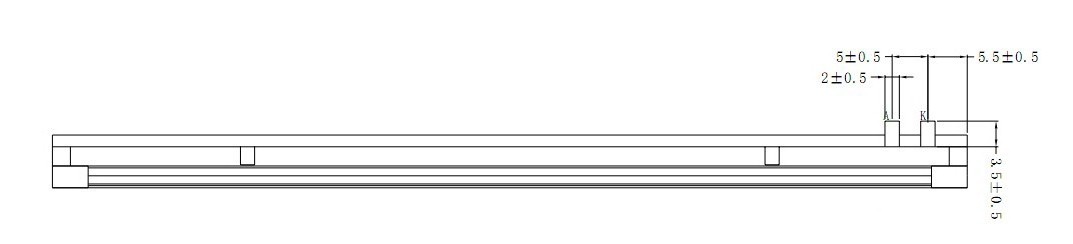

Physical Characteristics
| Column Dots x Row Dots |
240*80 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
128 |
57 |
10 |
117 |
42 |
112.78 |
37.58 |
| inches |
5.04 |
2.24 |
0.39 |
4.61 |
1.65 |
4.44 |
1.48 |
| |

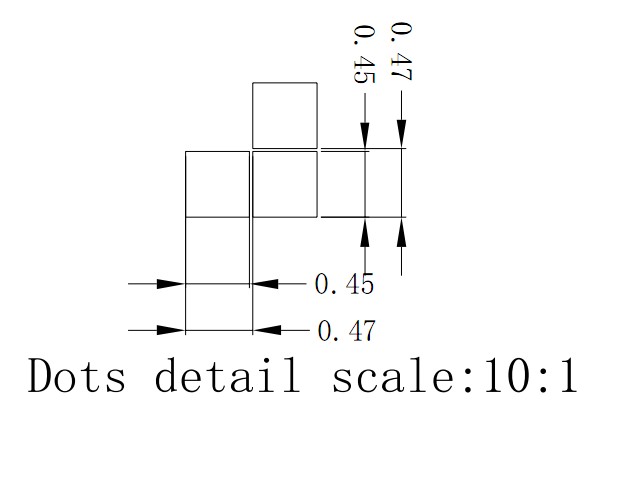

Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.45 |
0.45 |
0.47 |
0.47 |
| inches |
0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Blue |
Transmissive |
6:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~7.0 |
Logic Supply Voltage（V） |
5 |
| Supply Voltage For LCD Drive(V) |
0~30 |
LCD Drive（V） |
11.75 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
17.2 |
| Backlight |
| Forward Current(mA) |
40 |
Forward Voltage(V) |
17 |
| Reverse Voltage(V) |
25 |
Average Luminous Intensity(cd/m2) |
2200 |
| Power Dissipation(mW) |
800 |
|
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
