The features of LCD are as follows
* Display mode : STN/Yellow-reen/Transflective/Positive
* Controller/driver IC : AIP31066 (English-Japanese)
* Display format :8x2Characters
* Interface Input Data : 4bit or 8bit MPU
* Driving Method : 1/16Duty,1/5Bias
* Viewing Direction : 6 O’clock
* Backlight : LED/Y-G
* Sample NO. : C0802A4SBY6B-A0_01
For reference only. For design purposes, please use the specifications in the datasheet.

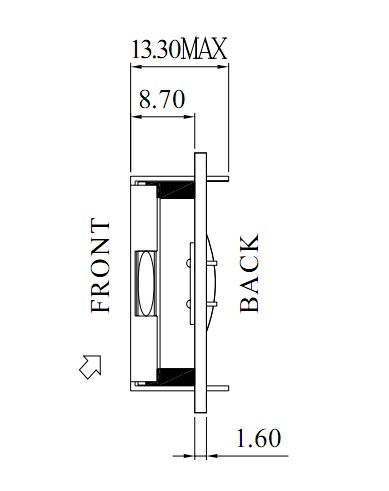

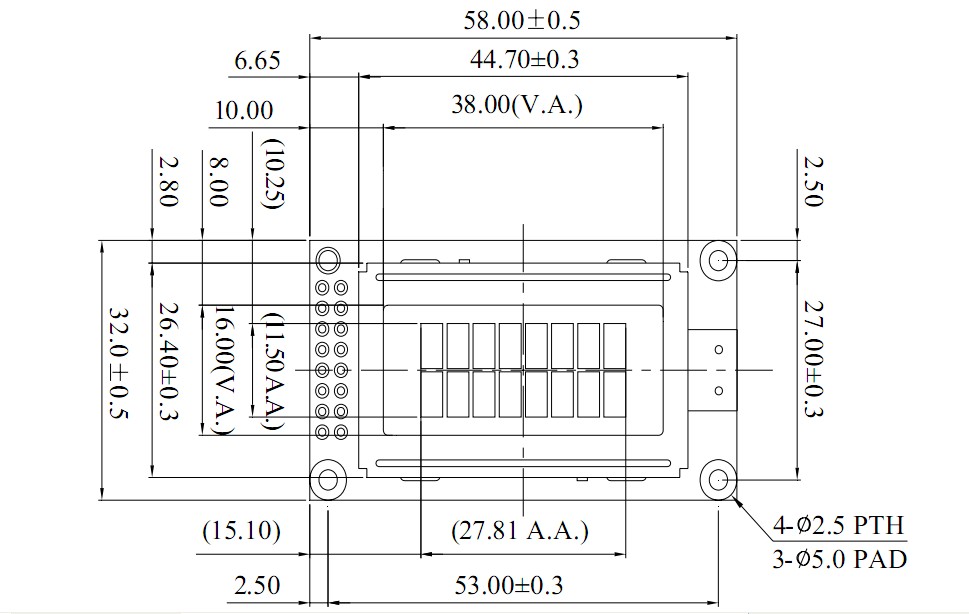

Physical Characteristics
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
40 |
29.7 |
12.7 |
31 |
14.5 |
25.1 |
9.5 |
| inches |
1.57 |
1.17 |
0.50 |
1.22 |
0.57 |
0.99 |
0.37 |
| |

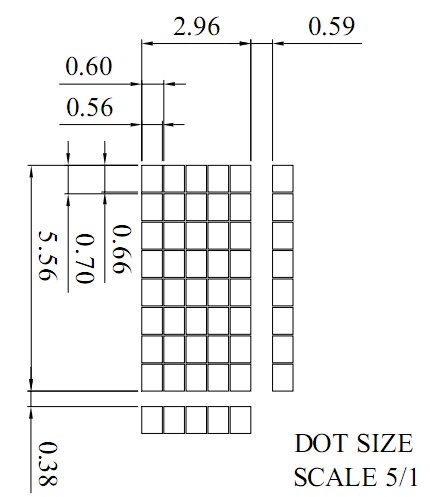

Character Size |
Character Pitch |
Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
width |
height |
width |
height |
| millimeters |
2.7 |
4.35 |
3.2 |
5.15 |
0.5 |
0.5 |
0.55 |
0.55 |
| inches |
0.11 |
0.17 |
0.13 |
0.20 |
0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Technology |
Display Addressing |
Glass Type/Glass Color |
Polarizer |
View Direction |
| LCD |
passive |
LED/Yollow-Green |
Transfective |
6:00 |
| Backlight Color |
Backlight Type |
Mode |
| Yellow-Green |
LED |
Positive |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Logic(V) |
-0.3~7 |
Logic supply Voltage(V) |
4.5～505 |
| Supply Voltage For LCD Drive(V) |
VDD-15~ VDD+0.3 |
LCD Drive(V) |
4.2～4.8 |
| Input Voltage(V) |
-0.3～VDD+0.3 |
Current Consumption(mA) |
1.82 |
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
Electronics
| Interface |
4bit or 8bit MPU |
